  11. Digital Temperature Controller, 97.63mm L

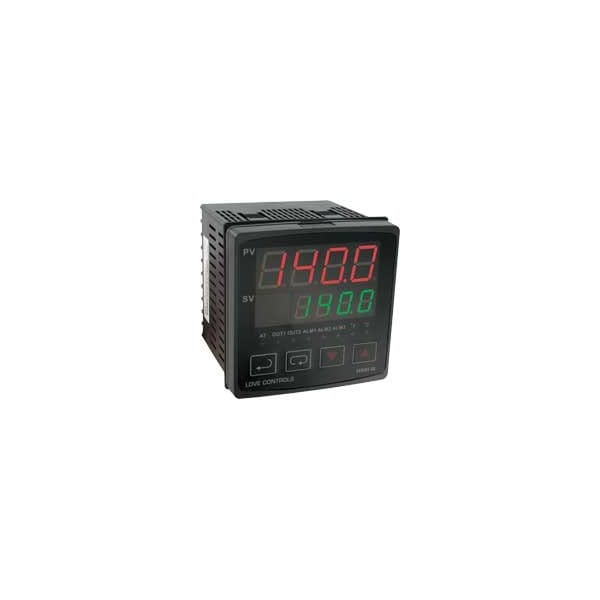

Dwyer Instruments Digital Temperature Controller, 97.63mm L 4B-23-LV - main

Digital Temperature Controller, 97.63mm L

  • Mfr # 4B-23-LV

  • Zoro # G509982651

product price: $189.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Description/Special Features
13 Different Preprogrammed Alarm Functions, Dual LED Displays, Non-Volatile Memory, RS-485 Communication, Stage Control Program for upto 64 Ramp/Soak Actions
Voltage
24V DC
Sensor Type
RTD, Thermocouple
DIN Size
1/4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4B-23-LV
Zoro #
G509982651
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

DIN Size
1/4
Length
97.63 mm
Depth
95 mm
Width
96 mm
Overall Length
97 5/8 mm
Overall Width
96 mm

Details

Item
Temperature Controller
Digital/Analog
Digital
Description/Special Features
13 Different Preprogrammed Alarm Functions, Dual LED Displays, Non-Volatile Memory, RS-485 Communication, Stage Control Program for upto 64 Ramp/Soak Actions
Voltage
24V DC
Sensor Type
RTD, Thermocouple
Input Voltage
24V DC
Switch Function
14V, 10% to -20% (Max 40 mA) (Output 1), SPDT, 5 A @ 250V AC Resistive (Output 2)
Output
Relay, Voltage Pulse
Temp. Range
32 Degrees to 122 Degrees F
Control Mode
Manual, On/Off Action, PID
Amps
40mA, 5A
Display
Two 4-digit, 7 segment. PV: 3/4" H (19 mm) red; SV: 1/2" H (12.7 mm) green.
Accuracy
±0.25% span, ±1 least significant digit.
Series
Series 4B
Features
Universal input accepts process transmitters, RTD's or thermocouple signals; On/off, PID, or manual output control; RS-485 standard on all models; Stage control program for up to 64 ramp/soak actions
Power Consumption
5 VA
Standards
CE, cUL, RoHS, UL
Inputs
Thermocouple, RTD, DC voltages or DC current.
Operating Temperature
32 to 122°F (0 to 50°C).
Agency Approvals
CE, cUL, UL.
Communication
RS-485 Modbus® A-5-11/RTU communication protocol.
Front Panel Rating
IP56.
Memory Backup
Nonvolatile memory.
Control Output Ratings
Relay: SPDT, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA; Linear Voltage: 0-10 V.
Display Type
Digital
Temperature - Maximum
122 Degrees F
Product Type
Temperature Controller
Current
40 mA, 5 A
Temperature - Minimum
32 Degrees F

Description

Temperature Controller, Digital, RTD, Thermocouple Sensor Type, DIN Size 1/4, Input Voltage 24V DC, Switch Function 14V, 10 Percent to -20 Percent (Max 40 mA) (Output 1), SPDT, 5 A @ 250V AC Resistive (Output 2), Output Relay, Voltage Pulse, Temp. Range 32 Degrees to 122 Degrees F, Control Mode Manual, On/Off Action, PID, 40mA, 5A Amps, Length 97.63 mm, Width 96 mm, Depth 95 mm
