Shop DWYER INSTRUMENTS

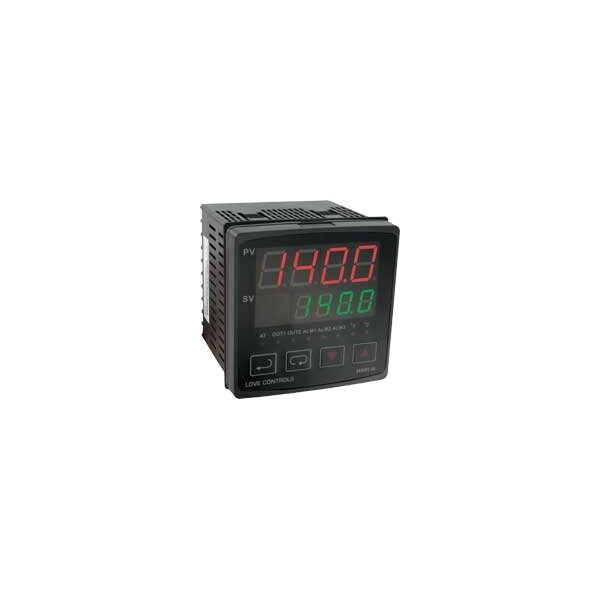

Digital Temperature Controller, 97.63mm L

  • Mfr # 4B-33-LV

  • Zoro # G909982640

product price:
$
209.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Sensor Type
RTD, Thermocouple
DIN Size
1/4
Description/Special Features
13 Different Preprogrammed Alarm Functions, Dual LED Displays, Non-Volatile Memory, RS-485 Communication, Stage Control Program for upto 64 Ramp/Soak Actions
Voltage
24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4B-33-LV
Zoro #
G909982640
UPC #
-
Country of Origin
Taiwan, Province of China
Item
Temperature Controller
Digital/Analog
Digital
Sensor Type
RTD, Thermocouple
Description/Special Features
13 Different Preprogrammed Alarm Functions, Dual LED Displays, Non-Volatile Memory, RS-485 Communication, Stage Control Program for upto 64 Ramp/Soak Actions
Voltage
24V DC
Input Voltage
24V DC
Switch Function
SPDT, 5 A @ 250V AC Resistive
Output
(2) Relay
Temp. Range
32 Degrees to 122 Degrees F
Control Mode
Manual, On/Off Action, PID
Amps
5A
Display
Two 4-digit, 7 segment. PV: 3/4" H (19 mm) red; SV: 1/2" H (12.7 mm) green.
Standards
CE, cUL, RoHS, UL
Series
4B
Power Consumption
5 VA
Features
Universal input accepts process transmitters, RTD's or thermocouple signals; On/off, PID, or manual output control; RS-485 standard on all models; Stage control program for up to 64 ramp/soak actions
Accuracy
+/-0.25% Span, +/-1 Least Significant Digit
Operating Temperature
32 to 122°F (0 to 50°C).
Memory Backup
Nonvolatile memory.
Front Panel Rating
IP56.
Control Output Ratings
Relay: SPDT, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA; Linear Voltage: 0-10 V.
Communication
RS-485 Modbus® A-5-11/RTU communication protocol.
Inputs
Thermocouple, RTD, DC voltages or DC current.
Agency Approvals
CE, cUL, UL.
Product Type
Temperature Controller
Temperature - Minimum
32 Degrees F
Current
20 mA
Display Type
Digital
Temperature - Maximum
122 Degrees F
Celsius Temperature - Minimum
-999 Degrees C
Operating Environment
Indoor
Fahrenheit Temperature - Maximum
122 Degrees F
Celsius Temperature - Maximum
9,999 Degrees C
Fahrenheit Temperature - Minimum
32 Degrees F
Display Units
Celsius, Fahrenheit
Parameters Measured
Temperature Degrees C, Temperature Degrees F
Controller Options
SPDT

Description

Temperature Controller, Digital, RTD, Thermocouple Sensor Type, DIN Size 1/4, Input Voltage 24V DC, Switch Function SPDT, 5 A @ 250V AC Resistive, Output (2) Relay, Temp. Range 32 Degrees to 122 Degrees F, Control Mode Manual, On/Off Action, PID, 5A Amps, Length 97.63 mm, Width 96 mm, Depth 95 mm, 13 Different Preprogrammed Alarm Functions, Dual LED Displays, Non-Volatile Memory, RS-485 Communication, Stage Control Program for upto 64 Ramp/Soak Actions, Power Consumption 5 VA
