Shop DWYER INSTRUMENTS

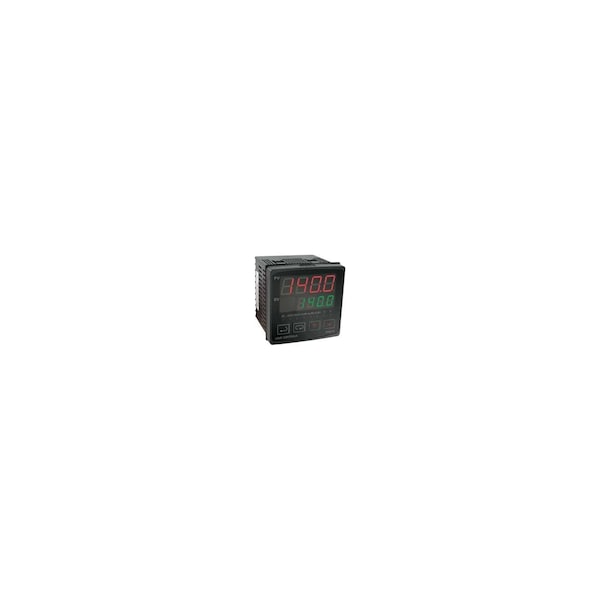

Digital Temperature Controller, 97.63mm L

  • Mfr # 4B-33
  • Zoro # G807149145
product price:
$
238.99
/ea
Free Shipping & Returns

Key Features

Display
Two 4-digit, 7 segment. PV: 3/4" H (19 mm) red; SV: 1/2" H (12.7 mm) green.
Features
Universal input accepts process transmitters, RTD's or thermocouple signals; On/off, PID, or manual output control; RS-485 standard on all models; Stage control program for up to 64 ramp/soak actions
Accuracy
±0.25% span, ±1 least significant digit.
Power Consumption
5 VA max.
Control Output Ratings
Relay: SPDT, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA; Linear Voltage: 0-10 V.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4B-33
Zoro #
G807149145
UPC #
-
Country of Origin
Taiwan, Province of China
Display
Two 4-digit, 7 segment. PV: 3/4" H (19 mm) red; SV: 1/2" H (12.7 mm) green.
Features
Universal input accepts process transmitters, RTD's or thermocouple signals; On/off, PID, or manual output control; RS-485 standard on all models; Stage control program for up to 64 ramp/soak actions
Accuracy
±0.25% span, ±1 least significant digit.
Power Consumption
5 VA max.
Control Output Ratings
Relay: SPDT, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA; Linear Voltage: 0-10 V.
Front Panel Rating
IP56.
Inputs
Thermocouple, RTD, DC voltages or DC current.
Agency Approvals
CE, cUL, UL.
Communication
RS-485 Modbus® A-5-11/RTU communication protocol.
Memory Backup
Nonvolatile memory.
Operating Temperature
32 to 122°F (0 to 50°C).

Description

Temperature Controller, Digital, RTD, Thermocouple Sensor Type, DIN Size 1/4, Input Voltage 100 to 240V AC, Switch Function SPDT, 5 A @ 250V AC Resistive, Output (2) Relay, Temp. Range 32 Degrees to 122 Degrees F, Control Mode Manual, On/Off Action, PID, 5A Amps, Length 97.63 mm, Width 96 mm, Depth 95 mm, 13 Different Preprogrammed Alarm Functions, Dual LED Displays, Non-Volatile Memory, RS-485 Communication, Stage Control Program for upto 64 Ramp/Soak Actions, Power Consumption 5 VA
