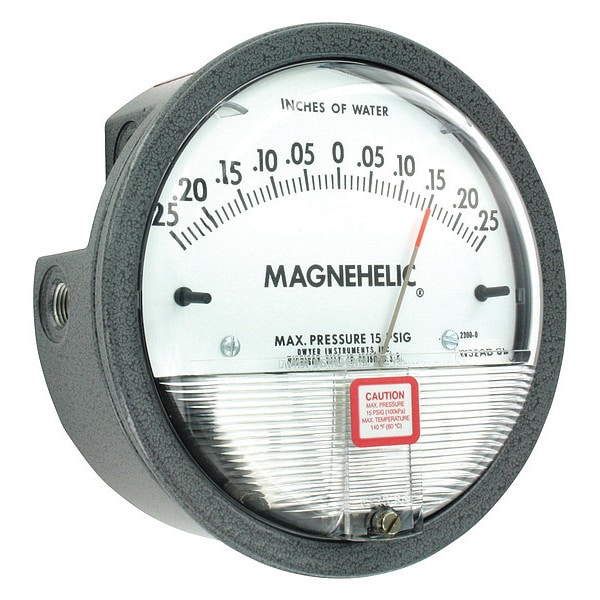

Dwyer Instruments Dwyer Magnehelic Pressure Gauge, 0.25In to 0 to 0.25In H2O 2300-0 - main

Dwyer Magnehelic Pressure Gauge, 0.25In to 0 to 0.25In H2O

  • Mfr # 2300-0

  • Zoro # G3168907

product price:  $107.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-2.00%
Process Connection Type
NPT
Process Connection Size
1/8 in
Series
2000
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2300-0
Zoro #
G3168907
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/8 in
Nominal Dial Size
4 in
Manufacturers Warranty Length
1 yr
Gauge Nominal Dial Size
4 in
Differential Gauge Connection Size
1/8 in
Bolt Circle Diameter
4.125 in
Manufacturer Warranty Length
5 yr
Case Depth
1.687 in
Case Diameter
4 3/4 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-2.00%
Process Connection Type
NPT
Series
2000
Process Connection Gender
Female
Application
Flow Measurement, Vacuum Applications, Clean Rooms, HVAC/R, Fan Pressure Indication, Filtration Monitoring
Process Connection Location
Back, Side
Housing Material
Die Cast Aluminum
Pressure Range
0.25 to 0 to 0.25 in wc
Sensor Type
Diaphragm
Rated Total Pressure
-20 in Hg to 15 psi
Differential Pressure Range Value
-0.25 to 0 to 0.25
Scale Type
Pressure
Basic Gauge Case Material
Metal
Gauge Accuracy
+/-2%
Differential Pressure Range Units
in wc
Includes
Instructions, Three Mounting Adapters with Screws, Two 1/8 in NPT Plugs, Two 1/8 in NPT to 3/16 in ID Rubber Tubing Adapters
Differential Pressure Range
0.25 in to 0 to 0.25 in wc
Dial Material
Die Cast Aluminum
Body Material
Die Cast Aluminum
Differential Gauge Connection Type
FNPT
Gauge Primary Range Smallest Graduation
0.01
Gauge Connection Location
Back and Side
Gauge Operating Temp. Range
20 Degrees to 140 Degrees F
Differential Pressure Gauge Type
Differential Pressure Gauge
Case Color
Gray
Case Material
Aluminum
Standards
EU Directive 2011/65/EU (RoHS II)
Pointer Material
Aluminum
Ambient Operating Temperature Range
20 Degrees to 140 Degrees F
Mounting Orientation
Upright Only
Pressure Gauge Type
Differential Pressure Gauge
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Dial Color
White
Panel-Mountable
Yes
Blowout Safety Back
Yes
Bezel Material
Die Cast Aluminum
Hazardous Location Rating
Not Rated
Over-Pressure Limit
1.72 bar
Case Shape
Round
Pointer Characteristics
Red Tipped Pointer of Heat Treated Aluminum Tubing is easy to see
Maximum Working Static Pressure
80 psig
Compatible Process Media
Cleanroom
Dial Face Material
Plastic
Case Finish
Die Cast
Includes Vent Plug
Yes
Includes Mounting Hardware
Yes
Bezel Mounting Type
Flush
Accuracy Details
+/-2% (-HA model +/-1) of FS ( +/-3% (-HA +/-1.5%) on -0, -100PA, -125PA, -10MM and +/-4% (-HA +/-2%) on -00, -60PA, -6MM ranges), throughout range at 70 Degrees F (21.1 Degrees C).
Case Construction
Corrosion Resistant
Includes Calibration Certificate
No
Mounting Hardware Included
Flange
Adjustable Set Points
No
Non-Sparking
No
IP/NEMA Rating
IP67
Removable Bezel
No
Sensor Material
Silicone Rubber
Gauge Case Material
Aluminum
Pressure Measurement - Maximum
0.25 in wc
Operating Temperature - Minimum
20 Degrees F
Operating Temperature - Maximum
140 Degrees F
Number of Switches
0
Pressure Measurement - Minimum
-0.25 in wc
IP Rating
IP67
Working Static Pressure - Maximum
80 psig

Description

Differential Pressure Gauge, Pressure Range 15.0-0-15.0 Inches WC, Pressure Range Minor Divisions 1.00, Rated Total Pressure -20 Inches Hg to 15 PSIG, Differential Pressure
