Shop DWYER INSTRUMENTS

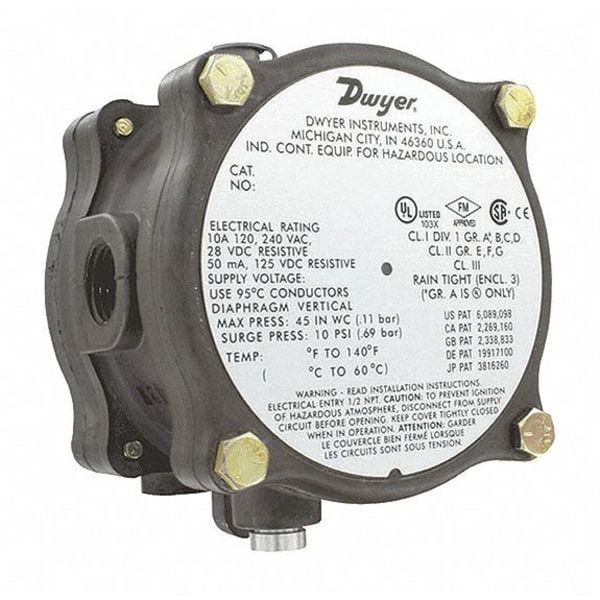

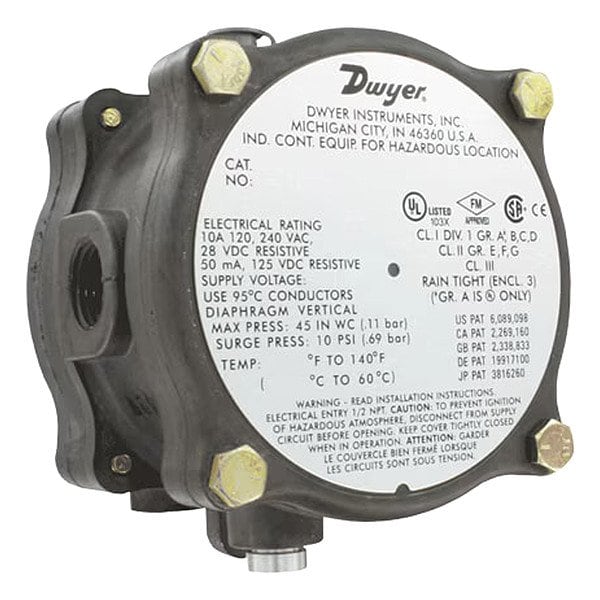

Explosion-Proof Pressure Switch

  • Mfr # 1950G-0-B-120-NA

  • Zoro # G0562628

product price:  $631.99
/ea
Free Shipping & Returns

Key Features

Series
1950G
Process Connection
1/8" female NPT.
Range
0.15 to 0.50 in H2O
Electrical Connection
Internal terminal block.
Standards
ATEX, CE Listed, CSA, FM, IECEx, UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1950G-0-B-120-NA
Zoro #
G0562628
UPC #
-
Country of Origin
United States

Dimensions

Mounting Hole Diameter
1/4 in
Overall Depth
3 1/2 in
Sample Line Connection Size
1/8 in
Overall Height
5 11/16 in
Overall Width
5 11/16 in

Details

Item
Explosion Proof Pressure Switch
Series
1950G
Process Connection
1/8" female NPT.
Range
0.15 to 0.50 in H2O
Electrical Connection
Internal terminal block.
Standards
ATEX, CE Listed, CSA, FM, IECEx, UL Listed
Features
Compatible with natural gas; External set point screw provides easy access that simplifies making adjustments without opening or disassembling enclosure; Easily accessible electrical connection simplifies the installation
Power Requirements
24 VDC ±10%. 120 or 240 VAC ±10% optional.
Mounting Orientation
Vertical
Temperature Limits
0 to 140°F (-17 to 60°C). Note: Set point drift may occur with ambient temperature changes.
Set Point Adjustment
Screw type on top of housing.
Switch Type
1 Form C relay (SPDT).
Electrical Rating
10 A @ 120/240 V AC and 28 V DC, 50 mA Resistive @ 125 V DC
Enclosure Rating
NEMA 3 (IP54), NEMA 7 and 9.
Agency Approvals
ATEX, CE, CSA, FM, IECEx, UL.
Service
Air and compatible combustible gases.
Gas Connection
1/8" Female NPT
For Fuel Type
Natural Gas
Weight
2 lb
Product Type
Pressure Switch
Maximum Control Temperature
140 Degrees F
Minimum Control Temperature
0 Degrees F
Pressure Connection Type
1/8 In. Female NPT
Sample Line Connector Type
NPT
Reset Type
Automatic Reset
Mounting Hole Center to Center Distance
4 7/8 in
Minimum Pressure Setting
0.06 in wc
Housing Material
Aluminum
Electrical Connection Type
Screw Terminals
Pressure Type
Differential
Pressure Setpoint Type
Adjustable
Number of Switches
1
IP Rating
IP54
Housing Type
NEMA-3 Enclosure
Maximum Differential Pressure Setting
0.5 in wc
Contact Form
SPDT
Maximum Pressure Setting
0.11 in wc
Maximum Operating Temperature
140 Degrees F
Maximum Pressure Rating
10 psig
Input Voltage
120V AC
Minimum Differential Pressure Setting
0.15 in wc
Minimum Operating Temperature
0 Degrees F

Description

Pressure Switch, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 10 A @ 120/240 V AC and 28 V DC, 50 mA Resistive @ 125 V DC, Housing Material Aluminum, Housing Type NEMA-3 Enclosure, IP Rating IP54, Input Voltage 120V AC, Maximum Differential Pressure Setting 0.5 in wc, Maximum Operating Temperature 140 Degrees F, Maximum Pressure Rating 10 psig, Maximum Pressure Setting 0.11 in wc, Minimum Differential Pressure Setting 0.15 in wc
