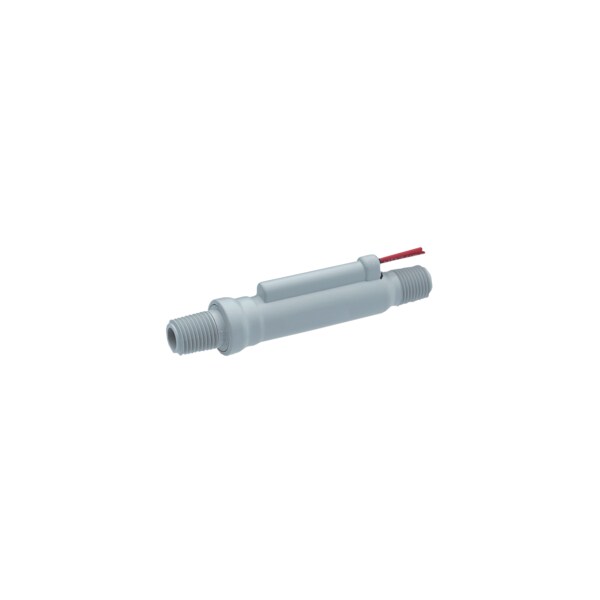

Flow switch for gases, actuation set point 1 CFM (28.3 LPM) at 5 psi.
Mfr # P2-16
Zoro # G310389199
product price:Â
$
204.99
/ea
Free Shipping & Returns
Key Features
Wetted Materials
Housing: PPE & PS (polyphenylene ether and polystyrene); Piston: PPE & PS (polyphenylene ether and polystyrene) and epoxy; Spring and Stop Pin: 316 SS.
Pressure Limits
150 psi (10.3 bar) @ 70°F (21°C); 50 psi (3.4 bar) @ 212°F (100°C).
Features
Piston design incorporates a hermetically sealed SPST magnetic reed switch; All wetted parts are FDA compliant; Economical design
Process Connection
1/4" male NPT.
Mounting Orientation
Any position. Set points shown are based on vertical, inlet down position.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- P2-16
- Zoro #
- G310389199
- UPC #
- -
- Country of Origin
- United States
Details
- Wetted Materials
- Housing: PPE & PS (polyphenylene ether and polystyrene); Piston: PPE & PS (polyphenylene ether and polystyrene) and epoxy; Spring and Stop Pin: 316 SS.
- Pressure Limits
- 150 psi (10.3 bar) @ 70°F (21°C); 50 psi (3.4 bar) @ 212°F (100°C).
- Features
- Piston design incorporates a hermetically sealed SPST magnetic reed switch; All wetted parts are FDA compliant; Economical design
- Process Connection
- 1/4" male NPT.
- Mounting Orientation
- Any position. Set points shown are based on vertical, inlet down position.
- Switch Type
- SPST, N.O.
- Electrical Rating
- .17 A @ 120 VAC, .08 A @ 240 VAC, .13 A @ 120 VDC, .06 A @ 240 VDC.
- Service
- Compatible liquids or gases.
- Temperature Limits
- 0 to 212°F (-18 to 100°C).
Description
Flow switch for gases, actuation set point 1 CFM 28.3 LPM @ 5 psi.
