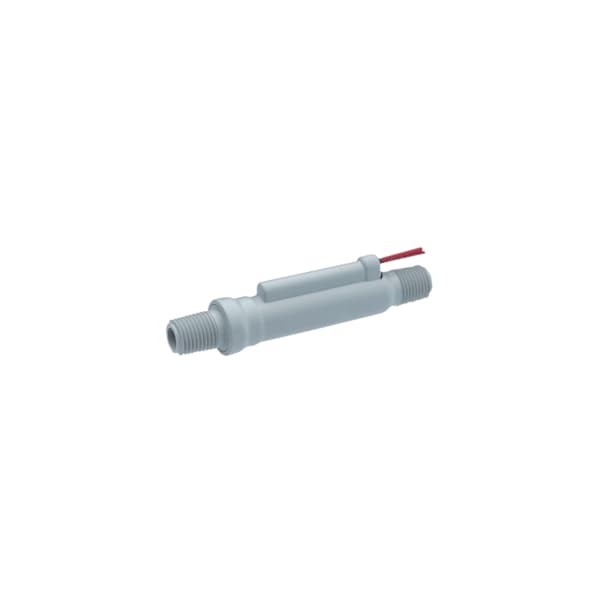

Flow switch for gases, actuation set point .42 CFM (11.9 LPM) at 5 psi.
Mfr # P2-15
Zoro # G307149164
product price:Â
$
190.99
/ea
Free Shipping & Returns
Key Features
Features
Piston design incorporates a hermetically sealed SPST magnetic reed switch; All wetted parts are FDA compliant; Economical design
Temperature Limits
0 to 212°F (-18 to 100°C).
Pressure Limits
150 psi (10.3 bar) @ 70°F (21°C); 50 psi (3.4 bar) @ 212°F (100°C).
Electrical Rating
.17 A @ 120 VAC, .08 A @ 240 VAC, .13 A @ 120 VDC, .06 A @ 240 VDC.
Mounting Orientation
Any position. Set points shown are based on vertical, inlet down position.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- P2-15
- Zoro #
- G307149164
- UPC #
- -
- Country of Origin
- United States
Details
- Features
- Piston design incorporates a hermetically sealed SPST magnetic reed switch; All wetted parts are FDA compliant; Economical design
- Temperature Limits
- 0 to 212°F (-18 to 100°C).
- Pressure Limits
- 150 psi (10.3 bar) @ 70°F (21°C); 50 psi (3.4 bar) @ 212°F (100°C).
- Electrical Rating
- .17 A @ 120 VAC, .08 A @ 240 VAC, .13 A @ 120 VDC, .06 A @ 240 VDC.
- Mounting Orientation
- Any position. Set points shown are based on vertical, inlet down position.
- Service
- Compatible liquids or gases.
- Process Connection
- 1/4" male NPT.
- Wetted Materials
- Housing: PPE & PS (polyphenylene ether and polystyrene); Piston: PPE & PS (polyphenylene ether and polystyrene) and epoxy; Spring and Stop Pin: 316 SS.
- Switch Type
- SPST, N.O.
Description
Flow switch for gases, actuation set point .42 CFM (11.9 LPM) @ 5 psi.
