  13. Flow switch for liquids, actuation set point 1 GPM (3.79 LPM).

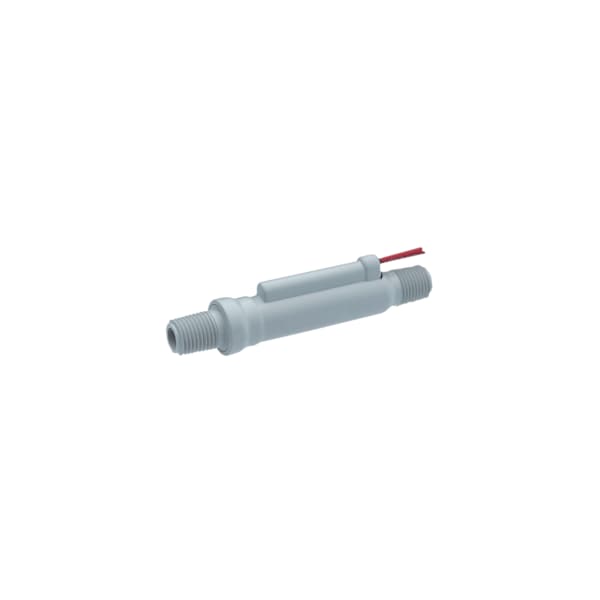

Dwyer Instruments Flow switch for liquids, actuation set point 1 GPM (3.79 LPM). P2-14 - main

Flow switch for liquids, actuation set point 1 GPM (3.79 LPM).

  • Mfr # P2-14

  • Zoro # G707149184

product price: $220.99
/ea
Free Shipping & Returns

Key Features

Mounting Orientation
Any position. Set points shown are based on vertical, inlet down position.
Switch Type
SPST, N.O.
Features
Piston design incorporates a hermetically sealed SPST magnetic reed switch; All wetted parts are FDA compliant; Economical design
Wetted Materials
Housing: PPE & PS (polyphenylene ether and polystyrene); Piston: PPE & PS (polyphenylene ether and polystyrene) and epoxy; Spring and Stop Pin: 316 SS.
Process Connection
1/4" male NPT.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P2-14
Zoro #
G707149184
UPC #
-
Country of Origin
United States

Details

Mounting Orientation
Any position. Set points shown are based on vertical, inlet down position.
Switch Type
SPST, N.O.
Features
Piston design incorporates a hermetically sealed SPST magnetic reed switch; All wetted parts are FDA compliant; Economical design
Wetted Materials
Housing: PPE & PS (polyphenylene ether and polystyrene); Piston: PPE & PS (polyphenylene ether and polystyrene) and epoxy; Spring and Stop Pin: 316 SS.
Process Connection
1/4" male NPT.
Electrical Rating
.17 A @ 120 VAC, .08 A @ 240 VAC, .13 A @ 120 VDC, .06 A @ 240 VDC.
Pressure Limits
150 psi (10.3 bar) @ 70°F (21°C); 50 psi (3.4 bar) @ 212°F (100°C).
Temperature Limits
0 to 212°F (-18 to 100°C).
Service
Compatible liquids or gases.

Description

Flow switch for liquids, actuation set point 1 GPM (3.79 LPM).
