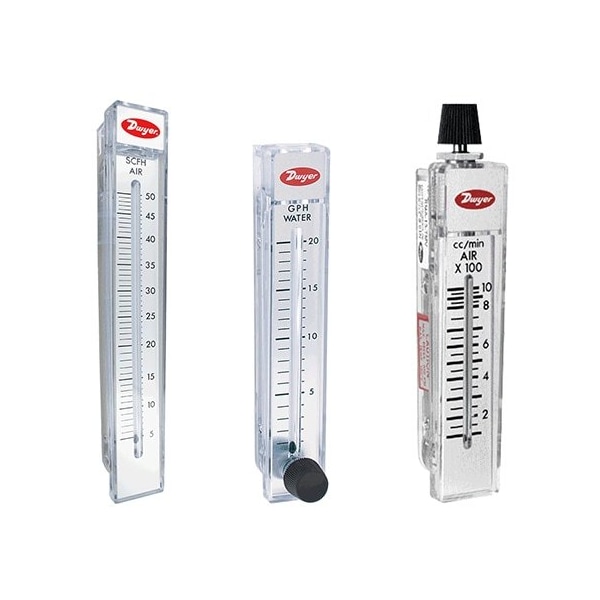

Flowmeter, range 10-100 GPH water.
- Mfr # RMB-85
- Zoro # G0571271
product price:Â
$
84.79
/ea
Key Features
Accuracy
3%
Housing Material
Polycarbonate
Overall Length
3.6 in
Overall Width
1.5 in
Overall Height
8.8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- RMB-85
- Zoro #
- G0571271
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 3.6 in
- Overall Width
- 1.5 in
- Overall Height
- 8.8 in
- Connection Size
- 1/4 in
- For Pipe Size
- 1/4 in
- Wire Rope Length
- 3.6 in
- Length
- 3.6 in
Details
- Item
- Flowmeter
- Accuracy
- 3%
- Housing Material
- Polycarbonate
- Standards
- EU Directive 2011/65/EU, RoHS II Compliant
- Operating Pressure - Maximum
- 100 psi
- Flow Rate - Maximum
- 100 gph
- Unit Of Measure
- Gallons
- Mounting Orientation
- Vertical
- O-Ring Material
- Buna-N, Neoprene
- Flowmeter Type
- Variable Area
- Compatible Flow Material
- Water
- Media Temperature - Maximum
- 130 Degrees F
- Flow Rate - Minimum
- 10 gph
- Wetted Material
- Aluminum, Buna-N, Glass, K500 Nickel-Copper Alloy, Neoprene, Polycarbonate, Stainless Steel, Tungsten Carbide
- Product Type
- Variable Area Flowmeter
- Connection Type
- FNPT
- Includes Flow Rate Adjustment Knob
- Yes
Description
Flowmeter, Product Type Variable Area Flowmeter, Flowmeter Type Variable Area, Accuracy 3 Percent, Connection Size 1/4 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 130 Degrees F, Media Temperature - Minimum Not Applicable, Viscosity - Maximum Not Applicable, Voltage - Maximum Not Applicable, Housing Material Polycarbonate, Rotor Material Not Applicable, O-Ring Material Buna-N, Neoprene, Seal Material Not Applicable, Shaft Material Not Applicable
