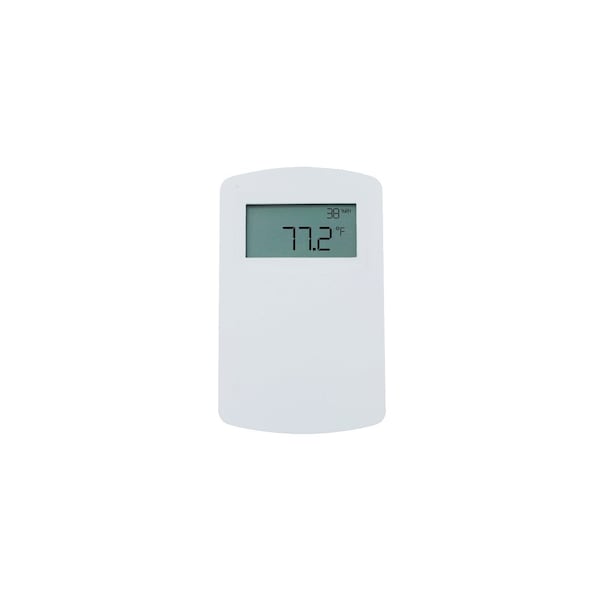

HumiditySensor, 4.5", 2.8", 4 to 20 mA, CE
- Mfr # RHP-2N40-LCD
- Zoro # G307158357
product price:Â
$
230.99
/ea
Free Shipping & Returns
Key Features
Relative Humidity Sensor
Capacitive
Input Voltage
10 to 35V DC
Manufacturers Warranty Length
5 yr
Electrical Connection
Screw Terminals
Output Power
4 to 20 mA
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- RHP-2N40-LCD
- Zoro #
- G307158357
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Manufacturers Warranty Length
- 5 yr
- Overall Width
- 1.1 in
- Overall Height
- 4.5 in
- Overall Length
- 2.8 in
- Fits Chest Size
- Field Selectable Relative Humidity or Dew Point Output, LCD Display Options, Universal Analog Outputs
Details
- Relative Humidity Sensor
- Capacitive
- Input Voltage
- 10 to 35V DC
- Electrical Connection
- Screw Terminals
- Output Power
- 4 to 20 mA
- IP Rating
- IP20
- Response Time
- 8 sec
- Humidity Measurement - Minimum
- 0 %
- Standards
- CE
- Compensated Temperature - Minimum
- -4 Degrees F
- Operating Temperature - Minimum
- -40 Degrees F
- Hysteresis
- +/-0.8%
- Series
- RHP-E/N
- Mounting Style
- Wall Mount
- Compensated Temperature - Maximum
- 140 Degrees F
- Item
- Humidity Sensor
- Enclosure Material
- Polycarbonate
- Humidity Accuracy
- +/-2%
- Humidity Measurement - Maximum
- 100 %
- Operating Temperature - Maximum
- 140 Degrees F
Description
Humidity Sensor, Power Required 10 to 35V DC, Electrical Connections Screw Terminals, Overall Length 2.8 in, IP Rating IP20, Series RHP-E/N, Output 4 to 20 mA, Relative Humidity Range 0 to 100 Percent, Humidity Accuracy +/-2 Percent, Compensated Temperature Range -4 Degrees to 140 Degrees F, Display LCD, Display Resolution 1 Percent/1 Degrees F, Display Type LCD, Display Units Degrees F/ Degrees C, Enclosure Material Polycarbonate
