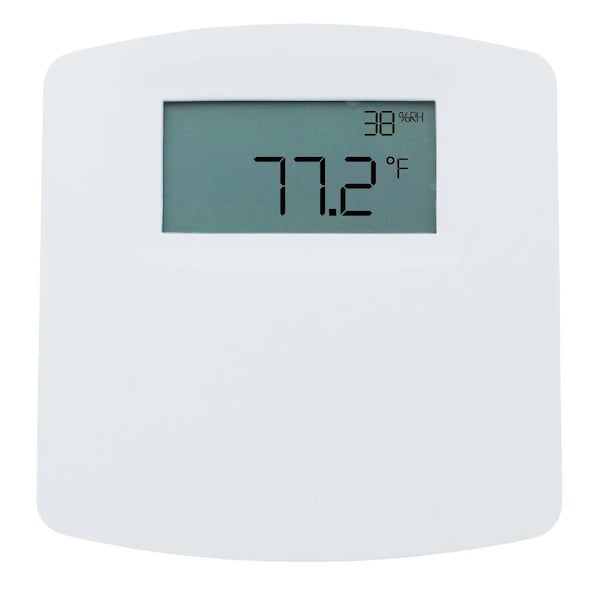

Hum/TempSnsr, 3.65", 3.56", 4 to 20 mA, CE
- Mfr # RHP-3E44-LCD
- Zoro # G707158391
product price:Â
$
240.99
/ea
Free Shipping & Returns
Key Features
Series
RHP-E/N
Process Media Temperature Measurement - Minimum
-20 Degrees F
Manufacturers Warranty Length
5 yr
Operating Temperature - Minimum
-40 Degrees F
Response Time
8 sec
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- RHP-3E44-LCD
- Zoro #
- G707158391
- UPC #
- -
- Country of Origin
- United States
- Series
- RHP-E/N
- Process Media Temperature Measurement - Minimum
- -20 Degrees F
- Operating Temperature - Minimum
- -40 Degrees F
- Response Time
- 8 sec
- Item
- Humidity/Temperature Sensor
- Standards
- CE
- Process Media Temperature Measurement - Maximum
- 140 Degrees F
- Operating Temperature - Maximum
- 140 Degrees F
- Output Power
- 4 to 20 mA
- Compensated Temperature - Minimum
- -4 Degrees F
- Relative Humidity Sensor
- Capacitive
- Input Voltage
- 10 to 35V DC
- Humidity Accuracy
- +/-3%
- Electrical Connection
- Screw Terminals
- Humidity Measurement - Maximum
- 100 %
- Humidity Measurement - Minimum
- 0 %
- IP Rating
- IP20
- Mounting Style
- Wall Mount
- Compensated Temperature - Maximum
- 140 Degrees F
- Enclosure Material
- Polycarbonate
- Hysteresis
- +/-0.8%
- Temperature Sensor
- Solid State Band Gap
- Temperature Accuracy
- +/-0.9 Degrees F @ 77 Degrees F
- Features
- Field Selectable Relative Humidity or Dew Point Output, LCD Display Options, Universal Analog Outputs
Dimensions
- Manufacturers Warranty Length
- 5 yr
- Fits Chest Size
- Field Selectable Relative Humidity or Dew Point Output, LCD Display Options, Universal Analog Outputs
- Overall Length
- 3.56 in
- Overall Height
- 3.65 in
- Overall Width
- 1.08 in
- Length
- 3.56 in
Description
Humidity/Temperature Sensor, Maximum Sensed Temperature 140 Degrees F, Minimum Sensed Temperature -20 Degrees F, Temperature Accuracy +/-0.9 Degrees F @ 77 Degrees F, Power Required 10 to 35V DC, Electrical Connections Screw Terminals, Overall Length 3.56 in, IP Rating IP20, Series RHP-E/N, Output 4 to 20 mA, Relative Humidity Range 0 to 100 Percent, Humidity Accuracy +/-3 Percent, Sensing Element Type Solid State Band Gap, Compensated Temperature Range -4 Degrees to 140 Degrees F, Display LCD
