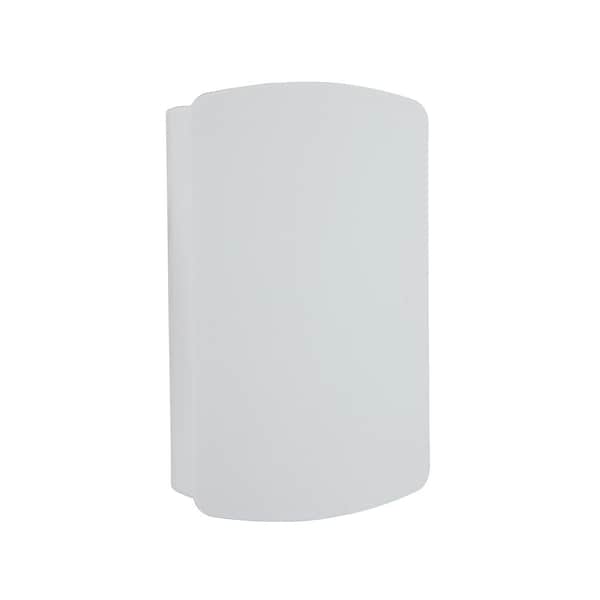

Hum/TempSnsr, 4.5", 2.8", 4 to 20 mA, CE
- Mfr # RHP-2N44-LCD
- Zoro # G207158327
product price:Â
$
260.99
/ea
Free Shipping & Returns
Key Features
Temperature Accuracy
+/-0.9 Degrees F @ 77 Degrees F
Fits Chest Size
Field Selectable Relative Humidity or Dew Point Output, LCD Display Options, Universal Analog Outputs
Humidity Measurement - Minimum
0 %
IP Rating
IP20
Process Media Temperature Measurement - Maximum
140 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- RHP-2N44-LCD
- Zoro #
- G207158327
- UPC #
- -
- Country of Origin
- United States
- Temperature Accuracy
- +/-0.9 Degrees F @ 77 Degrees F
- Humidity Measurement - Minimum
- 0 %
- IP Rating
- IP20
- Process Media Temperature Measurement - Maximum
- 140 Degrees F
- Output Power
- 4 to 20 mA
- Standards
- CE
- Compensated Temperature - Maximum
- 140 Degrees F
- Humidity Measurement - Maximum
- 100 %
- Series
- RHP-E/N
- Relative Humidity Sensor
- Capacitive
- Process Media Temperature Measurement - Minimum
- -20 Degrees F
- Electrical Connection
- Screw Terminals
- Operating Temperature - Minimum
- -40 Degrees F
- Temperature Sensor
- Solid State Band Gap
- Enclosure Material
- Polycarbonate
- Operating Temperature - Maximum
- 140 Degrees F
- Response Time
- 8 sec
- Hysteresis
- +/-0.8%
- Humidity Accuracy
- +/-2%
- Item
- Humidity/Temperature Sensor
- Compensated Temperature - Minimum
- -4 Degrees F
- Mounting Style
- Wall Mount
- Input Voltage
- 10 to 35V DC
- Features
- Field Selectable Relative Humidity or Dew Point Output, LCD Display Options, Universal Analog Outputs
Dimensions
- Fits Chest Size
- Field Selectable Relative Humidity or Dew Point Output, LCD Display Options, Universal Analog Outputs
- Overall Height
- 4.5 in
- Manufacturers Warranty Length
- 5 yr
- Overall Width
- 1.1 in
- Overall Length
- 2.8 in
- Length
- 2.8 in
Description
Humidity/Temperature Sensor, Maximum Sensed Temperature 140 Degrees F, Minimum Sensed Temperature -20 Degrees F, Temperature Accuracy +/-0.9 Degrees F @ 77 Degrees F, Power Required 10 to 35V DC, Electrical Connections Screw Terminals, Overall Length 2.8 in, IP Rating IP20, Series RHP-E/N, Output 4 to 20 mA, Relative Humidity Range 0 to 100 Percent, Humidity Accuracy +/-2 Percent, Sensing Element Type Solid State Band Gap, Compensated Temperature Range -4 Degrees to 140 Degrees F, Display LCD
