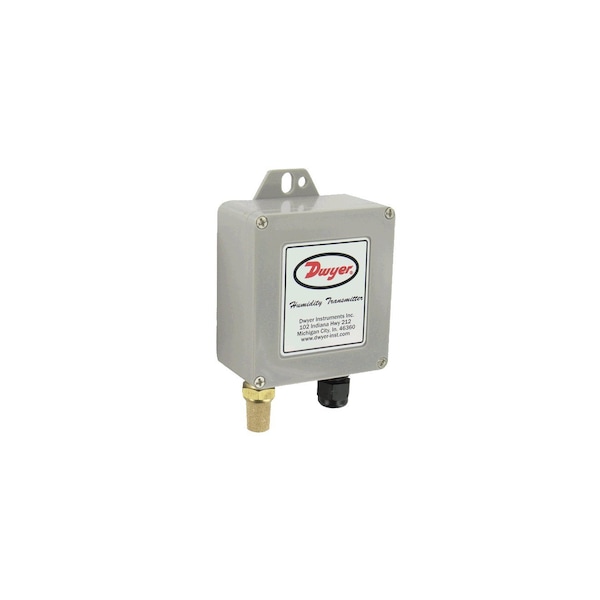

Hum/TempXTMR, 4.56", 2.75", 4 to 20mA
- Mfr # WHT-311
- Zoro # G307158326
product price:Â
$
221.99
/ea
Free Shipping & Returns
Key Features
Operating Temperature - Maximum
140 Degrees F
IP Rating
IP54
Humidity Accuracy
+/-2% @ 20 to 80% RH; +/-3% @ 10 to 20%, 80 to 90% RH.
Process Media Temperature Measurement - Maximum
140 Degrees F
Standards
CE, RoHS
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- WHT-311
- Zoro #
- G307158326
- UPC #
- -
- Country of Origin
- United States
- Item
- Humidity/Temperature Transmitter
- Operating Temperature - Maximum
- 140 Degrees F
- IP Rating
- IP54
- Humidity Accuracy
- +/-2% @ 20 to 80% RH; +/-3% @ 10 to 20%, 80 to 90% RH.
- Process Media Temperature Measurement - Maximum
- 140 Degrees F
- Standards
- CE, RoHS
- Compensated Temperature - Maximum
- 140 Degrees F
- Operating Temperature - Minimum
- -40 Degrees F
- Temperature Accuracy
- +/-0.9 Degrees F @ 72 Degrees F
- Relative Humidity Sensor
- Capacitive
- Output Power
- 4 to 20mA
- Mounting Style
- Floor Mount
- Process Media Temperature Measurement - Minimum
- -40 Degrees F
- NEMA Enclosure Rating
- 3S
- Humidity Measurement - Maximum
- 100 %
- Compensated Temperature - Minimum
- -4 Degrees F
- Electrical Connection
- Screw Terminals
- Includes Sintered Filter
- Yes
- Enclosure Material
- ABS
- Temperature Sensor
- Solid State Band Gap
- Response Time
- 15 sec
- Input Voltage
- 10 to 35V DC
- Series
- WHT
- Humidity Measurement - Minimum
- 0 %
Description
Humidity/Temperature Transmitter, Maximum Sensed Temperature 140 Degrees F, Minimum Sensed Temperature -40 Degrees F, Temperature Accuracy +/-0.9 Degrees F @ 72 Degrees F, Power Required 10 to 35V DC, Electrical Connections Screw Terminals, Overall Length 2.75 in, NEMA Rating NEMA 3S, IP Rating IP54, Series WHT, Output 4 to 20mA, Relative Humidity Range 0 to 100 Percent, Humidity Accuracy +/-2 Percent @ 20 to 80 Percent RH; +/-3 Percent @ 10 to 20 Percent, 80 to 90 Percent RH.
