  9. Intrinsically safe differential pressure transmitter, range -1.0/+1.0" w.c.

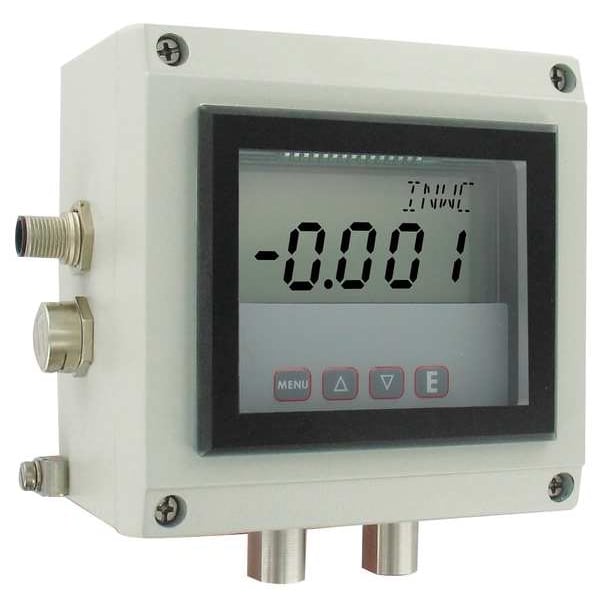

Dwyer Instruments Intrinsically safe differential pressure transmitter, range -1.0/+1.0" w.c. ISDP-014 - main

Intrinsically safe differential pressure transmitter, range -1.0/+1.0" w.c.

  • Mfr # ISDP-014

  • Zoro # G2276757

product price: $1,501.99
/ea
Free Shipping & Returns

Key Features

Pressure Range (In. WC)
1 to 0 to 1
Accuracy
+/-0.50% of Full Scale
Output
4 to 20mA DC
Power Required
10 to 35V DC
Process Connection Type
NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ISDP-014
Zoro #
G2276757
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/8 in
Overall Width - Transmitter
4.72 in
Overall Height - Transmitter
5.43 in
Process Connection Size - Transmitter
1/8 in
Overall Depth - Transmitter
3.44 in
Overall Length
3.43 in
Housing Height
4 11/16 in
Overall Width
4.71 in
Overall Height
5.21 in
Housing Length
4 11/16 in

Details

Item
Indicating Differential Transmitter
Pressure Range (In. WC)
1 to 0 to 1
Accuracy
+/-0.50% of Full Scale
Output
4 to 20mA DC
Power Required
10 to 35V DC
Process Connection Type
NPT
Connection Location
Bottom
Operating Temp. - Transmitter
32 Degrees to 104 Degrees F
Series
ISDP
Standards
2004/108/EC EMC Directive, CE: CENELEC EN 61326/55024: 2003, CENELEC EN 55011: 2006, FM, IEC 61000-4-2/3/4/6: 2001/2006/2004/2005
Output - Transmitter
4 to 20mA DC
Loop Resistance
0 to 1250 ohms
Includes
Instructions
Output Accuracy
0.5%
Power Required - Transmitters
10 to 35V DC
Safety Rating - Transmitter
Class I Div. 1 Groups A, B, C, D; Class II Div. 1 Groups E, F, G; Class III Div.1
Range Units - Transmitter
in wc/in wc
Wetted Materials - Transmitters
Ceramic, Gold, Silicone, Stainless Steel
Transmitter Type
Intrinsically Safe Differential Transmitter
Shape - Transmitter
Rectangular
Wiring Entry - Transmitter
None
Process Connection Type - Transmitter
FNPT
Range Values - Transmitter
-1 to 0 to 1
Display - Transmitter
4 Digit LCD
Connection Location - Transmitter
Bottom
Accuracy - Transmitter
+/-0.50%
Electrical Connections - Transmitter
4 Pin M12 Connector
Display Units
in wc
Number of Digits
4
Wetted Materials
Alumina Ceramic, Aluminum, Ceramic, Epoxy, Glass, Gold, Nickel, PVC, RTV, Silicon, Silicone, Stainless Steel
Display Type
Digital
NEMA Rating
NEMA 4X
Weight
2.62 lb
Pressure Units
in wc
Shape
Rectangular
Electrical Connections
4-Pin M12 Connector
Process Connection Gender
Female
NIST Traceable Certificate
No
Primary Scale Units
in wc
IP Rating
IP66
For Use With Media Type
Air, Non-Combustible Gases
Safety Rating
Class I Div. 1 Group A, B, C, D; Class II Div. 1 Group E, F; G; Class III Div. 1
Response Time
250 msec
Housing Material
Aluminum, Glass
Minimum Pressure
-1 in wc
Primary Scale Range
0 to +/-1.0 in wc
Intrinsically Safe
Yes
Number of Wires
2
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
32 Degrees F
Maximum Loop Resistance
1250 Ohm
Display Screen Type
LCD
Maximum Pressure
1 in wc
NEMA Enclosure Rating
4X
Process Media Temperature - Maximum
140 Degrees F
Loop Resistance - Maximum
1250 Ohm
Pressure Measurement - Maximum
1 in wc
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Output Power
4 to 20mA DC
Input Voltage
10 to 35V DC
Process Connection Location
Bottom
Pressure Measurement - Minimum
-1 in wc
Digital Display Screen Type
LCD
Intrinsic Safety
Intrinsically Safe
Process Media Temperature - Minimum
32 Degrees F
Electrical Connection
4-Pin M12 Connector

Description

Indicating Differential Transmitter, Output 4 to 20mA DC, Maximum Pressure 1 in wc, Minimum Pressure -1 in wc, Accuracy +/-0.50 Percent of Full Scale, Number of Wires 2, Power Required 10 to 35V DC, Process Connection Size 1/8 in, Process Connection Type NPT, Process Connection Gender Female, IP Rating IP66, NEMA Rating NEMA 4X, Series ISDP, Electrical Connections 4-Pin M12 Connector, NIST Traceable Certificate No, Display Type Digital, Housing Material Aluminum, Glass
