Shop DWYER INSTRUMENTS

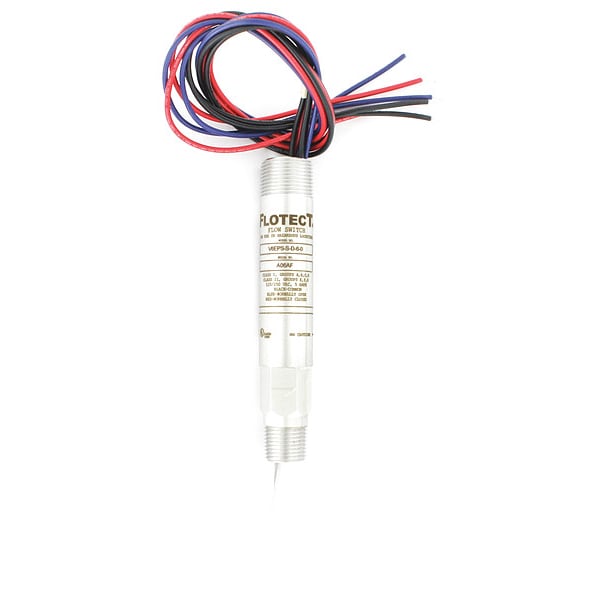

Liquid Flow Switch, DPDT, 125/250VAC

  • Mfr # V6EPS-S-D-6-0

  • Zoro # G0506652

product price:
$
537.99
/ea
Free Shipping & Returns

Key Features

Type
Piston
Housing Material
Stainless Steel
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
2 in
Connection Type
NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
V6EPS-S-D-6-0
Zoro #
G0506652
UPC #
-
Country of Origin
United States
Item
Liquid Flow Switch
Type
Piston
Housing Material
Stainless Steel
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Ceramic
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Max. Pressure (PSI)
1,000 psi
Hz
50/60
Min. Fluid Temp. (F)
-4 Degrees F
Max. Ambient Temp. (F)
167 Degrees F
Switch Type
DPDT
Max. Fluid Temp. (F)
220 Degrees F
Compliance
CSA, UL
Material of Construction
Stainless Steel
Application
Coolant Loops, Other
Body Material
Stainless Steel
For Use With
Liquids or Gases
Phase
Single
Min. Ambient Temp. (F)
-4 Degrees
Flow Rate
10 gpm
Contact Rating
5A at 125/250V AC
Ambient Temperature - Minimum
-4 Degrees F
Ambient Temperature - Maximum
167 Degrees F
Media Temperature - Minimum
-4 Degrees F
Set Point Configuration
Adjustable
Switch Position
Normally Closed, Normally Open
Frequency
50 Hz, 60 Hz
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel
Contact Rating (DC)
38 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Flow Switch Type
Paddle
Contact Rating (AC)
5 A @ 125/250V
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
Media Temperature - Maximum
220 Degrees F
Switch Enclosure
NEMA 4

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 2 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 38 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
