  11. Low cost timer controller, 4 channels.

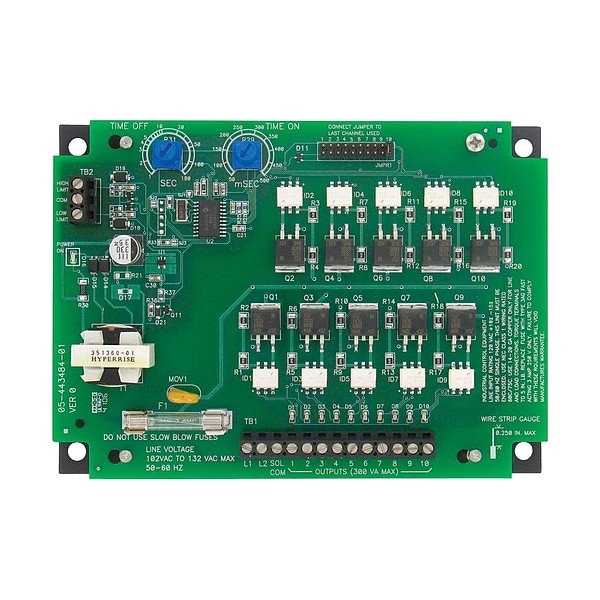

Dwyer Instruments Low cost timer controller, 4 channels. DCT504A - main

Low cost timer controller, 4 channels.

  • Mfr # DCT504A

  • Zoro # G3211446

product price: $172.99
/ea
Free Shipping & Returns

Key Features

Number of Channels
4
Standards
CE Approval, cULus
Overall Height
1 3/16 in
Features
Simple and easy to use design; Optional weatherproof enclosure available
Application
Machinery
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCT504A
Zoro #
G3211446
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
1 3/16 in
Overall Width
7 1/8 in

Details

Item
Electronic Timer
Number of Channels
4
Standards
CE Approval, cULus
Features
Simple and easy to use design; Optional weatherproof enclosure available
Application
Machinery
Series
DCT500A
Fuse
Type 3 AG, 3 A @ 250 VAC.
On Time Stability
±1 ms.
Off Time Accuracy
±5% of setting.
Agency Approvals
CE, cUL, UL.
Temperature Limits
-40 to 140°F (-40 to 60°C).
Power Requirements
102 to 132 VAC 50 or 60 Hz.
On Time
50 msec to 500 msec.
Solenoid Supply
3A max. per channel.
On Time Accuracy
±10 msec.
Power Consumption
2.5 W.
Output Channels
4, 6, & 10 channels.
Storage Temperature Limits
-40 to 176°F (-40 to 80°C).
Off Time
1 second to 180 seconds.
Operating Temperature - Maximum
140 Degrees F
Time Setting - Minimum
1 sec
Timer Functions
On/Off Pulse
Operating Temperature - Minimum
-40 Degrees F
Current Rating - Maximum
30 A
Time Setting - Maximum
180 sec
AC Voltage Rating
102-132V AC
Time Minimum Setting
1 sec
Time Maximum Setting
180 sec

Description

Digital Timer, Number of Channels 4, Standards CE Approval, cULus
