Dwyer Instruments

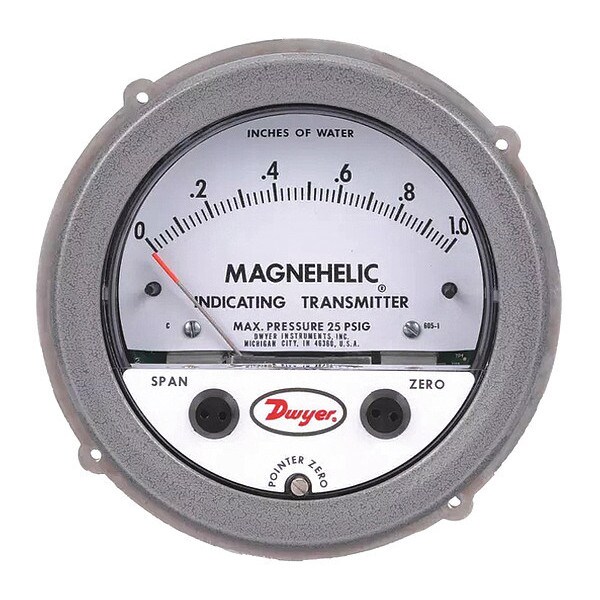

Magmohelic Indicating Tr

product price: $472.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Location Back
  • Range 0 to 0.25" w.c.
  • Output 4 to 20mA
  • Accuracy +/-2% (Electrical); +/-3% (Mechanical)
  • Diameter 5 in
See all product information

Product Information

Dimensions

Diameter 5 in
Overall Length 2.5 in
Process Connection Size 1/8 in
Housing Length 4 in
Overall Width 5.25 in

Details

Connection Location Back
Item Indicating Transmitter
Range 0 to 0.25" w.c.
Output 4 to 20mA
Accuracy +/-2% (Electrical); +/-3% (Mechanical)
Gauge Operating Temp. Range -4 Degrees to 185 Degrees F
Series 605
Calibration Certificate Included No
Power Required 10 to 35V DC
Display Units in wc
Features Easy to Read Gage
Electrical Connections Screw Terminals
Standards CE, RoHS Compliant
NEMA Rating Not Rated
Thermal Error +/-0.025%/ Degrees F
Weight 1 lb
For Use With Media Type Air, Non-Combustible Compatible Gases
Primary Scale Units in wc
Process Connection Location Back
Pressure Units in wc
Minimum Pressure -0.25 in wc
Process Connection Gender Female
Maximum Operating Temperature 120 Degrees F
Maximum Pressure 0.25 in wc
Process Connection Type NPT
Intrinsically Safe No
Minimum Operating Temperature 20 Degrees F
Maximum Loop Resistance 1250 Ohm
Explosion/Fire Proof No
Shape Round
NIST Traceable Certificate No
Display Type Dial
Number of Wires 2
Primary Scale Range -0.25 to 0.25 in wc
IP Rating Not Rated

Description

Indicating Transmitter, Output 4 to 20mA, Maximum Pressure 0.25 in wc, Minimum Pressure -0.25 in wc, Accuracy +/-2 Percent (Electrical); +/-3 Percent (Mechanical), Number of Wires 2, Power Required 10 to 35V DC, Process Connection Size 1/8 in, Process Connection Type NPT, Process Connection Gender Female, IP Rating Not Rated, NEMA Rating Not Rated, Series 605, Electrical Connections Screw Terminals, NIST Traceable Certificate No, Display Type Dial, Connection Location Back, Diameter 5 in
