  9. Mini-size flow switch, brass upper and lower body, 1-1/2" NPT, brass tee.

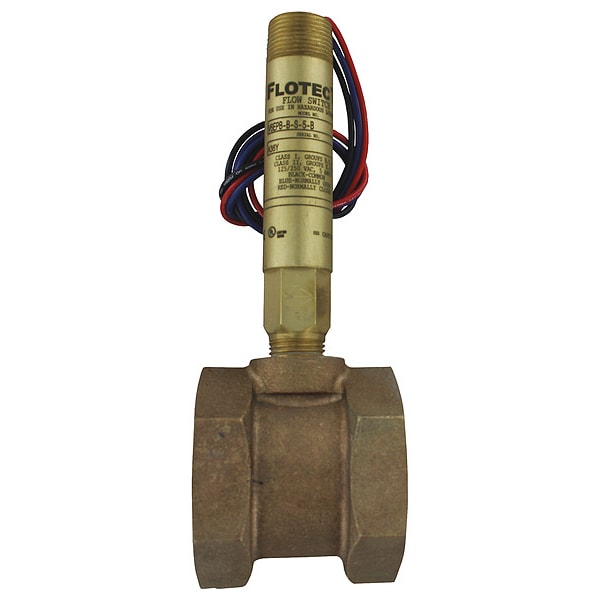

Dwyer Instruments Mini-size flow switch, brass upper and lower body, 1-1/2" NPT, brass tee. V6EPB-B-S-5-B - main

Mini-size flow switch, brass upper and lower body, 1-1/2" NPT, brass tee.

  • Mfr # V6EPB-B-S-5-B

  • Zoro # G0503642

product price: $558.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Brass
Type
Piston
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1 1/2 in
Connection Type
NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V6EPB-B-S-5-B
Zoro #
G0503642
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1 1/2 in
Connection Size (In.)
1-1/2 FNPT
Max. Duct Size (In.)
1 1/2 in
Overall Height
4.8 in
Overall Length
3.6 in
Overall Width
3.6 in

Details

Item
Liquid Flow Switch
Housing Material
Brass
Type
Piston
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, Brass, Ceramic
For Use With
Liquids or Gases
Max. Ambient Temp. (F)
167 Degrees F
Min. Fluid Temp. (F)
-4 Degrees F
Flow Rate
6 gpm
Hz
50/60
Compliance
CSA, UL
Max. Pressure (PSI)
250 psi
Switch Type
SPDT
Contact Rating
5A at 125/250V AC
Phase
Single
Max. Fluid Temp. (F)
220 Degrees F
Material of Construction
Brass
Body Material
Brass
Application
Coolant Loops, Other
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Min. Ambient Temp. (F)
-4 Degrees
Flow Switch Type
Paddle
Switch Enclosure
NEMA 4
Media Temperature - Maximum
220 Degrees F
Switch Position
Normally Closed, Normally Open
Ambient Temperature - Minimum
-4 Degrees F
Contact Rating (DC)
26 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel
Media Temperature - Minimum
-4 Degrees F
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
Contact Rating (AC)
5 A @ 125/250V
Ambient Temperature - Maximum
167 Degrees F
Frequency
50 Hz, 60 Hz
Set Point Configuration
Adjustable

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 1 1/2 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 26 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
