Shop DWYER INSTRUMENTS

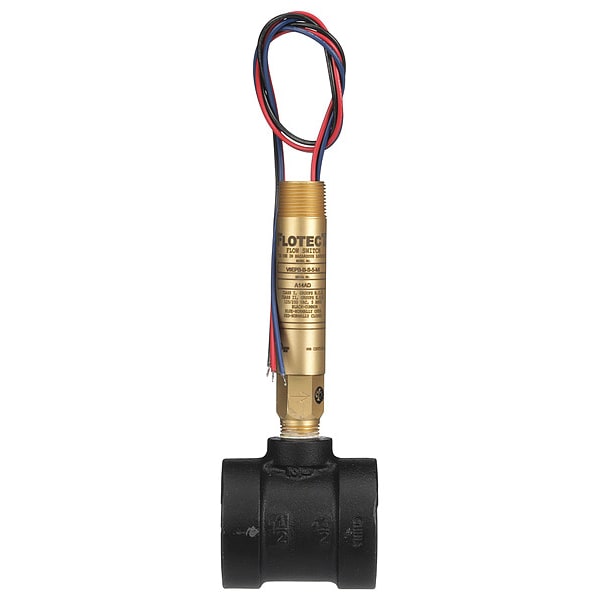

Mini-size flow switch, brass upper and lower body, 1-1/2" NPT, iron tee.

  • Mfr # V6EPB-B-S-5-MI

  • Zoro # G0503247

product price:  $487.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Brass
Type
Piston
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1 1/2 in
Connection Type
NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V6EPB-B-S-5-MI
Zoro #
G0503247
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1 1/2 in
Connection Size (In.)
1-1/2 FNPT
Max. Duct Size (In.)
1 1/2 in
Overall Width
3.6 in
Overall Length
3.6 in
Overall Height
4.8 in
Wire Rope Length
3.6 in

Details

Item
Liquid Flow Switch
Housing Material
Brass
Type
Piston
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, Brass, Ceramic
Body Material
Brass
Phase
Single
Max. Ambient Temp. (F)
167 Degrees F
Application
Coolant Loops, Other
Max. Fluid Temp. (F)
220 Degrees F
Hz
50/60
Max. Pressure (PSI)
1,000 psi
Compliance
CSA, UL
For Use With
Liquids or Gases
Flow Rate
6 gpm
Min. Fluid Temp. (F)
-4 Degrees F
Material of Construction
Brass
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Switch Type
SPDT
Contact Rating
5A at 125/250V AC
Min. Ambient Temp. (F)
-4 Degrees
Frequency
50 Hz, 60 Hz
Media Temperature - Minimum
-4 Degrees F
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel
Switch Position
Normally Closed, Normally Open
Switch Enclosure
NEMA 4
Flow Switch Type
Paddle
Ambient Temperature - Minimum
-4 Degrees F
Contact Rating (DC)
27 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Ambient Temperature - Maximum
167 Degrees F
Contact Rating (AC)
5 A @ 125/250V
Media Temperature - Maximum
220 Degrees F
Set Point Configuration
Adjustable
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 1 1/2 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 27 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
