Shop DWYER INSTRUMENTS

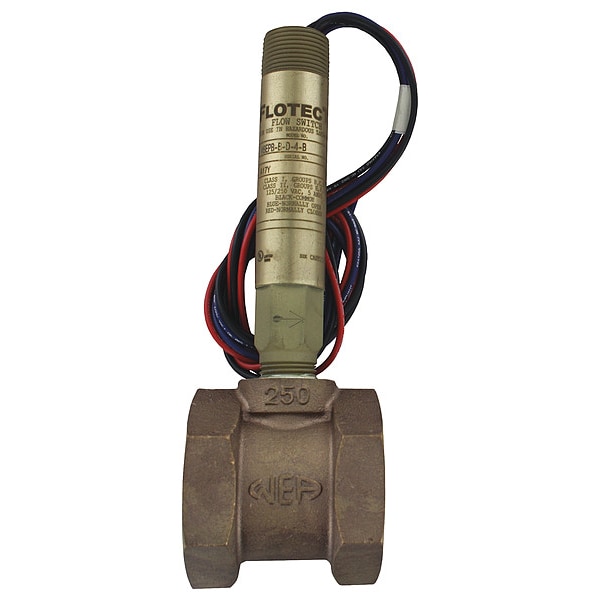

Mini-size flow switch, brass upper and lower body, 1-1/4" NPT, brass tee.

  • Mfr # V6EPB-B-D-4-B

  • Zoro # G0507623

product price:
$
568.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Brass
Type
Piston
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1 1/4 in
Connection Type
NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V6EPB-B-D-4-B
Zoro #
G0507623
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1 1/4 in
Max. Duct Size (In.)
1 1/4 in
Connection Size (In.)
1-1/4 FNPT
Overall Length
3.6 in
Overall Height
4.8 in
Overall Width
3.6 in
Wire Rope Length
3.6 in
Length
3.6 in

Details

Item
Liquid Flow Switch
Housing Material
Brass
Type
Piston
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, Brass, Ceramic
Min. Fluid Temp. (F)
-4 Degrees F
Application
Coolant Loops, Other
Material of Construction
Brass
Compliance
CSA, UL
Max. Pressure (PSI)
250 psi
Switch Type
DPDT
Hz
50/60
Phase
Single
Min. Ambient Temp. (F)
-4 Degrees
For Use With
Liquids or Gases
Max. Ambient Temp. (F)
167 Degrees F
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Flow Rate
4 gpm
Contact Rating
5A at 125/250V AC
Body Material
Brass
Max. Fluid Temp. (F)
220 Degrees F
Ambient Temperature - Maximum
167 Degrees F
Set Point Configuration
Adjustable
Switch Position
Normally Closed, Normally Open
Media Temperature - Minimum
-4 Degrees F
Contact Rating (AC)
5 A @ 125/250V
Contact Rating (DC)
11 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Frequency
50 Hz, 60 Hz
Flow Switch Type
Paddle
Ambient Temperature - Minimum
-4 Degrees F
Media Temperature - Maximum
220 Degrees F
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
Switch Enclosure
NEMA 4
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 1 1/4 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 11 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
