Shop DWYER INSTRUMENTS

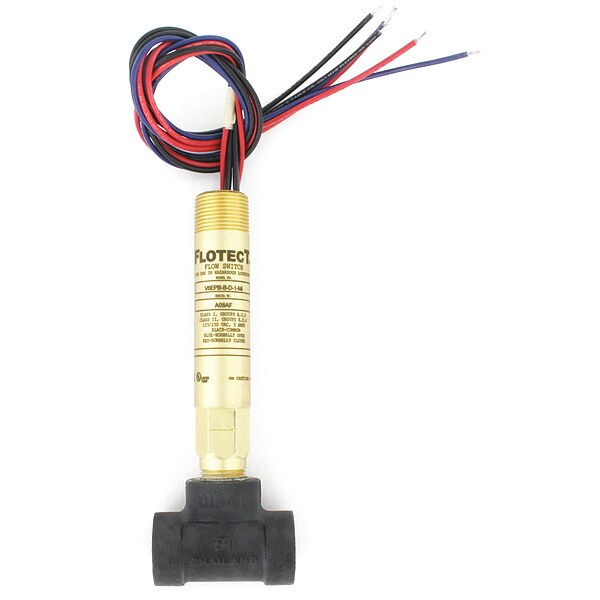

Mini-size flow switch, brass upper and lower body, 1/2" NPT, iron tee.

  • Mfr # V6EPB-B-D-1-MI

  • Zoro # G0505304

product price:  $377.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Brass
Type
Piston
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1/2 in
Connection Type
NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V6EPB-B-D-1-MI
Zoro #
G0505304
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1/2 in
Connection Size (In.)
1/2 FNPT
Max. Duct Size (In.)
1/2 in
Overall Length
3.6 in
Overall Height
4.8 in
Overall Width
3.6 in
Wire Rope Length
3.6 in

Details

Item
Liquid Flow Switch
Housing Material
Brass
Type
Piston
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, Brass, Ceramic
Min. Ambient Temp. (F)
-4 Degrees
Flow Rate
1.5 gpm
Max. Pressure (PSI)
1,000 psi
Contact Rating
5A at 125/250V AC
Max. Fluid Temp. (F)
220 Degrees F
Switch Type
DPDT
For Use With
Liquids or Gases
Max. Ambient Temp. (F)
167 Degrees F
Hz
50/60
Phase
Single
Material of Construction
Brass
Body Material
Brass
Application
Coolant Loops, Other
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Min. Fluid Temp. (F)
-4 Degrees F
Compliance
CSA, UL
Contact Rating (AC)
5 A @ 125/250V
Contact Rating (DC)
5 A Resistive @ 30V (CSA, ATEX and IECEx Models), 6 A (Inductive) @ 30V (CSA, ATEX and IECEx Models)
Frequency
50 Hz, 60 Hz
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
Ambient Temperature - Minimum
-4 Degrees F
Flow Switch Type
Paddle
Ambient Temperature - Maximum
167 Degrees F
Switch Enclosure
NEMA 4
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel
Switch Position
Normally Closed, Normally Open
Media Temperature - Maximum
220 Degrees F
Set Point Configuration
Adjustable
Media Temperature - Minimum
-4 Degrees F

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 1/2 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), 6 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
