  9. Mini-size flow switch, brass upper and lower body, 2" NPT, iron tee.

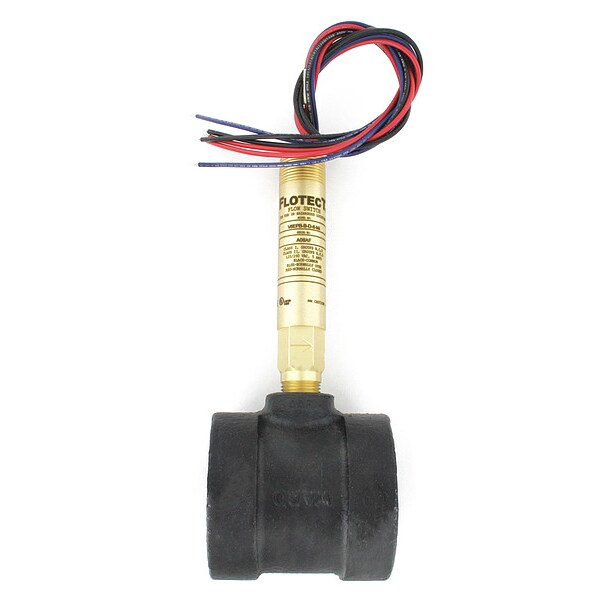

Dwyer Instruments Mini-size flow switch, brass upper and lower body, 2" NPT, iron tee. V6EPB-B-D-6-MI - main

Mini-size flow switch, brass upper and lower body, 2" NPT, iron tee.

  • Mfr # V6EPB-B-D-6-MI

  • Zoro # G0503922

product price: $664.99
/ea
Free Shipping & Returns

Key Features

Type
Piston
Housing Material
Brass
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
2 in
Connection Type
NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V6EPB-B-D-6-MI
Zoro #
G0503922
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
2 in
Max. Duct Size (In.)
2 in
Connection Size (In.)
2 FNPT
Overall Height
4.8 in
Overall Width
3.6 in
Overall Length
3.6 in

Details

Item
Liquid Flow Switch
Type
Piston
Housing Material
Brass
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, Brass, Ceramic
Min. Ambient Temp. (F)
-4 Degrees
Switch Type
DPDT
Flow Rate
10 gpm
Body Material
Brass
Contact Rating
5A at 125/250V AC
Hz
50/60
Max. Ambient Temp. (F)
167 Degrees F
Compliance
CSA, UL
Material of Construction
Brass
Min. Fluid Temp. (F)
-4 Degrees F
Max. Fluid Temp. (F)
220 Degrees F
Max. Pressure (PSI)
1,000 psi
Application
Coolant Loops, Other
For Use With
Liquids or Gases
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Phase
Single
Frequency
50 Hz, 60 Hz
Switch Position
Normally Closed, Normally Open
Media Temperature - Maximum
220 Degrees F
Flow Switch Type
Paddle
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel
Ambient Temperature - Minimum
-4 Degrees F
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
Ambient Temperature - Maximum
167 Degrees F
Contact Rating (AC)
5 A @ 125/250V
Switch Enclosure
NEMA 4
Media Temperature - Minimum
-4 Degrees F
Set Point Configuration
Adjustable
Contact Rating (DC)
16 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 2 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 16 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
