  9. Mini-size flow switch, stainless steel upper and lower body, 1/2" NPT, stainless steel tee.

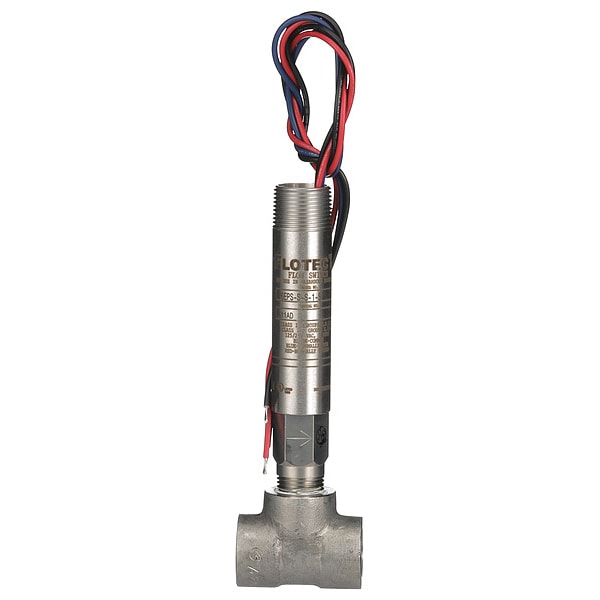

Dwyer Instruments Mini-size flow switch, stainless steel upper and lower body, 1/2" NPT, stainless steel tee. V6EPS-S-S-1-S - main

Mini-size flow switch, stainless steel upper and lower body, 1/2" NPT, stainless steel tee.

  • Mfr # V6EPS-S-S-1-S

  • Zoro # G0505426

product price: $418.71
/ea
Free Shipping & Returns

Key Features

Type
Piston
Housing Material
Stainless Steel
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1/2 in
Connection Type
NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V6EPS-S-S-1-S
Zoro #
G0505426
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1/2 in
Max. Duct Size (In.)
1/2 in
Connection Size (In.)
1/2 FNPT
Overall Width
3.6 in
Overall Length
3.6 in
Overall Height
4.8 in

Details

Item
Liquid Flow Switch
Type
Piston
Housing Material
Stainless Steel
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Ceramic
Max. Fluid Temp. (F)
220 Degrees F
Material of Construction
Stainless Steel
Max. Pressure (PSI)
2,000 psi
Min. Ambient Temp. (F)
-4 Degrees
Compliance
CSA, UL
Min. Fluid Temp. (F)
-4 Degrees F
Application
Coolant Loops, Other
Phase
Single
Hz
50/60
Contact Rating
5A at 125/250V AC
Body Material
Stainless Steel
For Use With
Liquids or Gases
Flow Rate
1.5 gpm
Switch Type
SPDT
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Max. Ambient Temp. (F)
167 Degrees F
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
Set Point Configuration
Adjustable
Contact Rating (AC)
5 A @ 125/250V
Ambient Temperature - Maximum
167 Degrees F
Switch Enclosure
NEMA 4
Media Temperature - Maximum
220 Degrees F
Frequency
50 Hz, 60 Hz
Switch Position
Normally Closed, Normally Open
Ambient Temperature - Minimum
-4 Degrees F
Contact Rating (DC)
40 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel
Media Temperature - Minimum
-4 Degrees F
Flow Switch Type
Paddle

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 1/2 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 40 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
