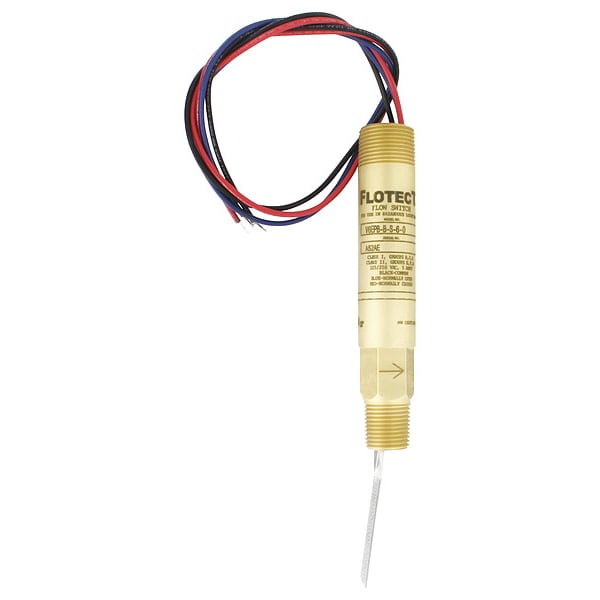

Dwyer Instruments Mini-Size Flow Switch V6EPB-B-S-6-0 - main

Mini-Size Flow Switch

  • Mfr # V6EPB-B-S-6-0

  • Zoro # G0559058

product price: $323.99
/ea
Free Shipping & Returns

Key Features

Connection Size (In.)
1/2 MNPT
Switch Type
SPDT
Voltage
125/250V AC
For Use With
Liquids or Gases
Switch Enclosure
NEMA 4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V6EPB-B-S-6-0
Zoro #
G0559058
UPC #
-
Country of Origin
United States

Dimensions

Connection Size (In.)
1/2 MNPT
Max. Duct Size (In.)
2 in
Overall Length
3.6 in
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1/2 in
Overall Width
3.6 in
Overall Height
4.8 in

Details

Switch Type
SPDT
Voltage
125/250V AC
Item
Liquid Flow Switch
For Use With
Liquids or Gases
Switch Enclosure
NEMA 4
Body Material
Brass
Min. Fluid Temp. (F)
-4 Degrees F
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, Brass, Ceramic
Max. Pressure (PSI)
1,000 psi
Hz
50/60
Type
Piston
Material of Construction
Brass
Min. Ambient Temp. (F)
-4 Degrees
Compliance
CSA, UL
Phase
Single
Max. Fluid Temp. (F)
220 Degrees F
Contact Rating
5A at 125/250V AC
Application
Coolant Loops, Other
Flow Rate
10 gpm
Max. Ambient Temp. (F)
167 Degrees F
Connection Type
NPT
Housing Material
Brass
Flow Switch Type
Paddle
Ambient Temperature - Maximum
167 Degrees F
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel
Set Point Configuration
Adjustable
Frequency
50 Hz, 60 Hz
Media Temperature - Minimum
-4 Degrees F
Ambient Temperature - Minimum
-4 Degrees F
Contact Rating (DC)
30 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Media Temperature - Maximum
220 Degrees F
Contact Rating (AC)
5 A @ 125/250V
Switch Position
Normally Closed, Normally Open
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 1/2 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 30 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
