Shop DWYER INSTRUMENTS

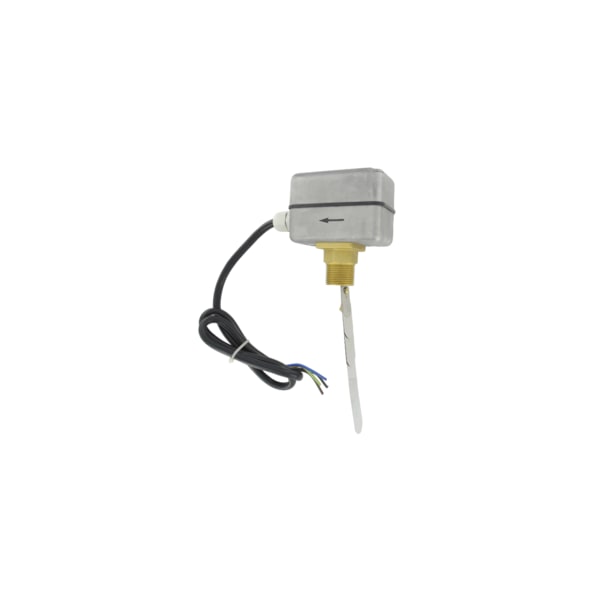

Paddle flow switch, 1" male NPT connection with 8 ft leads

  • Mfr # FS-2-W8
  • Zoro # G710389201
product price:
$
104.99
/ea
Free Shipping & Returns

Key Features

Switch Type
SPDT snap switch.
Features
Field adjustable set point adjustment screw allows for easy flow switch modification; Custom application set points enabled by field adjustable vane layers; Aluminum weatherproof housing permits outdoor installation
Wetted Materials
Bellow: Tin-bronze; Vane: SS; Body: Forged brass.
Process Connection
1" male NPT or BSPT.
Agency Approvals
CE.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FS-2-W8
Zoro #
G710389201
UPC #
-
Country of Origin
China

Details

Switch Type
SPDT snap switch.
Features
Field adjustable set point adjustment screw allows for easy flow switch modification; Custom application set points enabled by field adjustable vane layers; Aluminum weatherproof housing permits outdoor installation
Wetted Materials
Bellow: Tin-bronze; Vane: SS; Body: Forged brass.
Process Connection
1" male NPT or BSPT.
Agency Approvals
CE.
Electrical Rating
10 A res, 3 A ind @ 250 VAC.
Temperature Limits
230°F (110°C).
Pressure Limits
145 psig (10 bar).
Set Point Adjustment
Four vane combinations and an adjustment screw.
Service
Compatible liquids.
Enclosure Rating
NEMA 4 (IP64).
Mounting Orientation
Switch must be installed vertically on horizontal pipe runs.

Description

Paddle flow switch, 1in male NPT connection with 8 ft leads
