  9. P/N V6Epb-B-S-4-B, Flotect Flow Switch

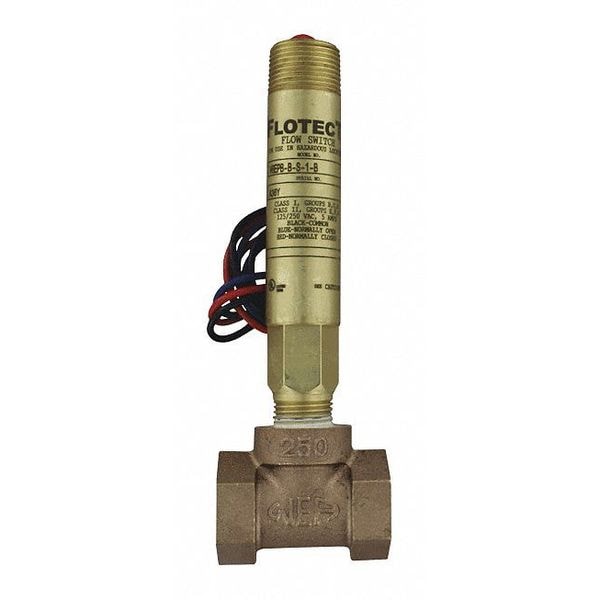

Dwyer Instruments P/N V6Epb-B-S-4-B, Flotect Flow Switch V6EPB-B-S-4-B - main

P/N V6Epb-B-S-4-B, Flotect Flow Switch

  • Mfr # V6EPB-B-S-4-B

  • Zoro # G0559049

product price: $452.99
/ea
Free Shipping & Returns

Key Features

Connection Size (In.)
1-1/4 FNPT
Switch Type
SPDT
Voltage
125/250V AC
Max. Fluid Temp. (F)
220 Degrees F
Min. Ambient Temp. (F)
-4 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V6EPB-B-S-4-B
Zoro #
G0559049
UPC #
-
Country of Origin
United States

Dimensions

Connection Size (In.)
1-1/4 FNPT
Max. Duct Size (In.)
1 1/4 in
Overall Length
3.6 in
Connection Size
1 1/4 in
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Overall Height
4.8 in
Overall Width
3.6 in

Details

Switch Type
SPDT
Voltage
125/250V AC
Item
Liquid Flow Switch
Max. Fluid Temp. (F)
220 Degrees F
Min. Ambient Temp. (F)
-4 Degrees
Max. Ambient Temp. (F)
167 Degrees F
Max. Pressure (PSI)
250 psi
Type
Piston
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, Brass, Ceramic
Switch Enclosure
NEMA 4
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Hz
50/60
For Use With
Liquids or Gases
Contact Rating
5A at 125/250V AC
Material of Construction
Brass
Flow Rate
4 gpm
Body Material
Brass
Application
Coolant Loops, Other
Min. Fluid Temp. (F)
-4 Degrees F
Phase
Single
Compliance
CSA, UL
Connection Type
NPT
Housing Material
Brass
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel
Ambient Temperature - Maximum
167 Degrees F
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
Frequency
50 Hz, 60 Hz
Set Point Configuration
Adjustable
Contact Rating (AC)
5 A @ 125/250V
Ambient Temperature - Minimum
-4 Degrees F
Media Temperature - Maximum
220 Degrees F
Flow Switch Type
Paddle
Switch Position
Normally Closed, Normally Open
Contact Rating (DC)
24 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Media Temperature - Minimum
-4 Degrees F

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 1 1/4 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 24 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
