  13. Polypropylene flow switch, actuation set point 0.50 GPM (1.89 LPM), 3/8" NPT.

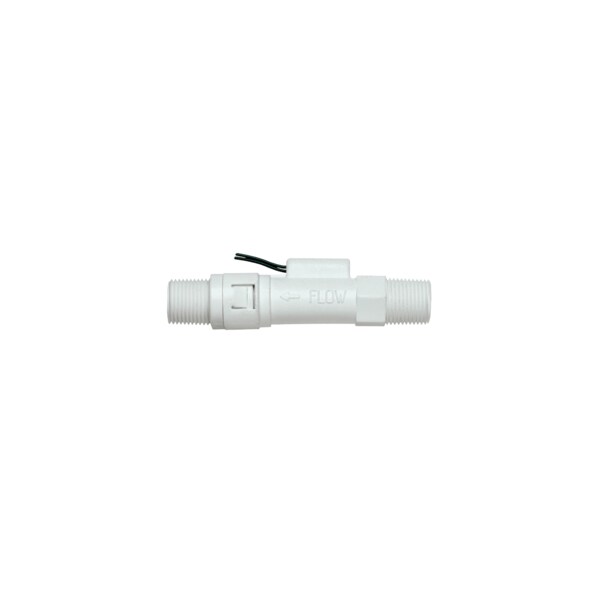

Dwyer Instruments Polypropylene flow switch, actuation set point 0.50 GPM (1.89 LPM), 3/8" NPT. P3-32 - main

Polypropylene flow switch, actuation set point 0.50 GPM (1.89 LPM), 3/8" NPT.

  • Mfr # P3-32

  • Zoro # G007149082

product price: $142.99
/ea
Free Shipping & Returns

Key Features

Features
Piston design incorporates a hermetically sealed SPST magnetic reed switch; Easy integration to existing piping with a variety of fitting options; Selectable shut off valve will stop line flow when the adapter is removed from the switch; Economical design
Temperature Limits
0 to 212°F (-18 to 100°C).
Accuracy
20% of set point.
Electrical Rating
.08 A @ 120 VAC.
Mounting Orientation
Any position. Set points shown are based on vertical, inlet down position.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P3-32
Zoro #
G007149082
UPC #
-
Country of Origin
United States

Details

Features
Piston design incorporates a hermetically sealed SPST magnetic reed switch; Easy integration to existing piping with a variety of fitting options; Selectable shut off valve will stop line flow when the adapter is removed from the switch; Economical design
Temperature Limits
0 to 212°F (-18 to 100°C).
Accuracy
20% of set point.
Electrical Rating
.08 A @ 120 VAC.
Mounting Orientation
Any position. Set points shown are based on vertical, inlet down position.
Wetted Materials
Housing: Polypropylene; Piston: PPS composite; Spring: 316SS; O-ring: Fluorocarbon.
Service
Compatible liquids.
Pressure Limits
125 psig (8.6 bar) @ 70°F (21°C); 50 psig (3.4 bar) @ 212°F (100°C).
Switch Type
SPST, N.O.
Process Connection
3/8" male NPT or 1/4" quick disconnect.

Description

Polypropylene flow switch, actuation set point 0.50 GPM (1.89 LPM), 3/8" NPT.

Documents & Resources

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
