Pressure Switch, SPDT, 1/8" MNPT, 0 to 10 in H2O Range
Mfr # MP-010
Zoro # G607143398
product price: $613.99
/ea
Free Shipping & Returns
Key Features
Contact Form
SPDT
Pressure Connection Type
1/8" MNPT
Range
0 to 10 in H2O
Standards
CE, cULus
Size
4-1/8" (104.78 mm) depth x 3-1/16" (77.79 mm) diameter.
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MP-010
Zoro #
G607143398
UPC #
-
Country of Origin
United States
Dimensions
Size
4-1/8" (104.78 mm) depth x 3-1/16" (77.79 mm) diameter.
Details
Item
Pressure Switch
Contact Form
SPDT
Pressure Connection Type
1/8" MNPT
Range
0 to 10 in H2O
Standards
CE, cULus
Accuracy
±5% FS @ 70°F (21.1°C). Gage face mounted in vertical position.
Features
Gage reading unaffected by switch operation and will continue to read pressure even during power loss; Visible switch status LED provides indication of set point switching state; Compact design but with the power of larger devices can meet the same application specifications
Process Connections
Barbed for 3/16" ID tubing (STD); 1/8" male NPT (optional).
Mounting Orientation
Gage face in vertical position.
Standard Accessories
(2) mounting screws, (1) .050" hex allen wrench.
Agency Approvals
CE, cULus.
Service
Air and non-combustible, compatible gases.
Switch Type
(2) SPDT relays.
Pressure Limits
30 psig (2.067 bar).
Set Point Adjustment
Push buttons.
Temperature Limits
20 to 120°F (-6.7 to 49°C).
Power Requirements
24 VDC / 24 VAC 50/60 Hz 4 W.
Description

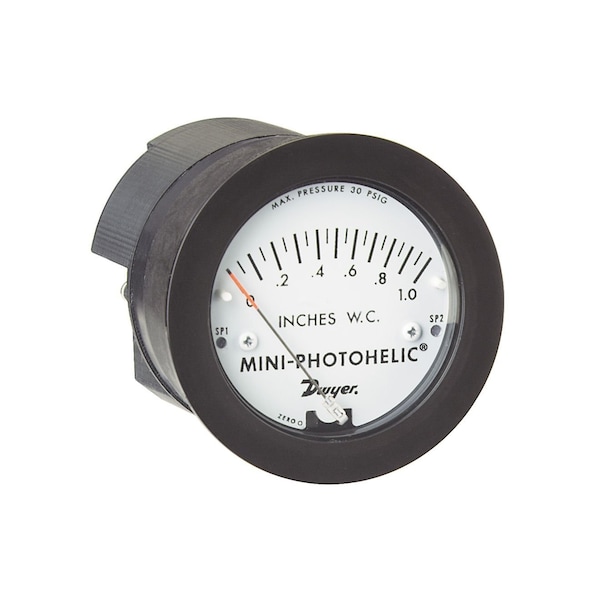

Differential pressure switch/gage, range 0-10" water.
