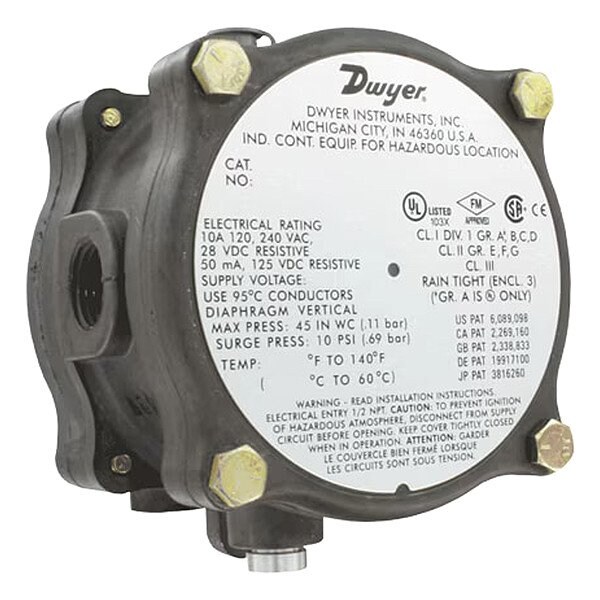

Pressure Switch, SPDT, NEMA-3 Enclosure

  • Mfr # 1950G-1-B-24

  • Zoro # G916437904

product price:
$
818.99
/ea
Free Shipping & Returns

Key Features

Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Overall Depth
5 5/8 in
Product Type
Pressure Switch
Mounting Hole Diameter
1/4 in
Weight
3.3 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1950G-1-B-24
Zoro #
G916437904
UPC #
-
Country of Origin
United States

Dimensions

Overall Depth
5 5/8 in
Mounting Hole Diameter
1/4 in
Overall Height
5 11/16 in
Overall Width
5 11/16 in
Sample Line Connection Size
1/8 in

Details

Item
Pressure Sensor
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Product Type
Pressure Switch
Weight
3.3 lb
IP Rating
IP54
Housing Type
NEMA-3 Enclosure
Pressure Setpoint Type
Adjustable
Maximum Pressure Rating
10 psig
Minimum Operating Temperature
0 Degrees F
Electrical Connection Type
Screw Terminals
Electrical Rating
10 A @ 120/240 V AC and 28 V DC, 50 mA Resistive @ 125 V DC
Mounting Hole Center to Center Distance
4 7/8 in
Input Voltage
24V DC
Minimum Pressure Setting
0.11 in wc
Mounting Orientation
Vertical
Contact Form
SPDT
Minimum Differential Pressure Setting
0.4 in wc
Sample Line Connector Type
NPT
Number of Switches
1
Maximum Operating Temperature
140 Degrees F
Maximum Differential Pressure Setting
1.6 in wc
Maximum Pressure Setting
0.29 in wc
Pressure Type
Differential
Housing Material
Aluminum
Reset Type
Automatic Reset

Description

Pressure Sensor
