Shop DWYER INSTRUMENTS

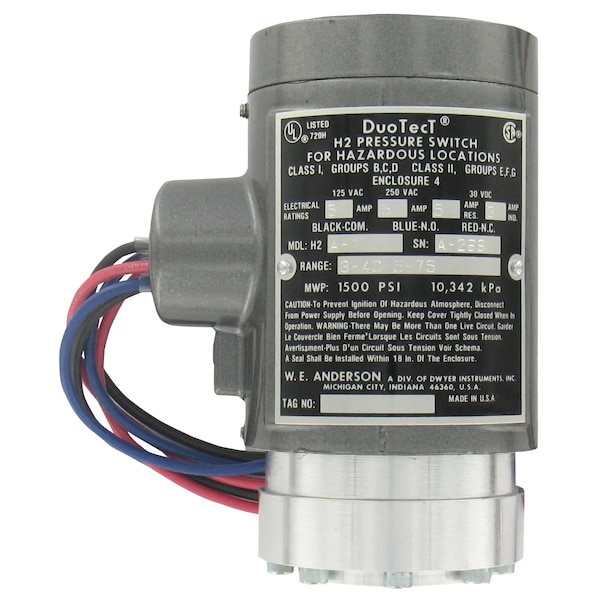

Pressure Switch, Standard, 2SPDT, 1 Ports, 1/4" FNPT, 100 to 1500 psi Range, 316 Stainless Steel

  • Mfr # H2S-3

  • Zoro # G310474574

product price:
$
2,456.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
2SPDT
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4 in FNPT
Range
100 to 1500 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H2S-3
Zoro #
G310474574
UPC #
-
Country of Origin
United States

Details

Item
Pressure Switch
Action
Standard
Contact Form
2SPDT
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4 in FNPT
Range
100 to 1500 psi
Housing Material
316 Stainless Steel
Factory On Setting
100 psi
Factory Off Setting
1500 psi
Standards
CSA, UL
Features
Explosion-proof and weatherproof housing provides device protection for outdoor use or harsh environment operation; UL listed, CSA approved to support rigorous process applications and regulations; Independent piston action design for either gas or liquid allows switches to active together or independently based on settings; Mounting in any position and not affected by vibration provides reliable switching for equipment
Wetted Materials
316 SS chamber with FEP diaphragm and Buna-N O-ring standard. Fluoroelastomer or EPDM O-ring optional.
Switch Type
Two SPDT snap switches.
Deadband
Approximately 10% of range.
Temperature Limit
275°F (135°C). CSA approved: -20 to 90°C (-4 to 184°F).
Set Point Adjustment
Internal nut.
Mounting Orientation
Any position.
Agency Approvals
CSA, UL.
Pressure Limit
1500 psig (103 bar).
Conduit Connection
3/4" female NPT.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
