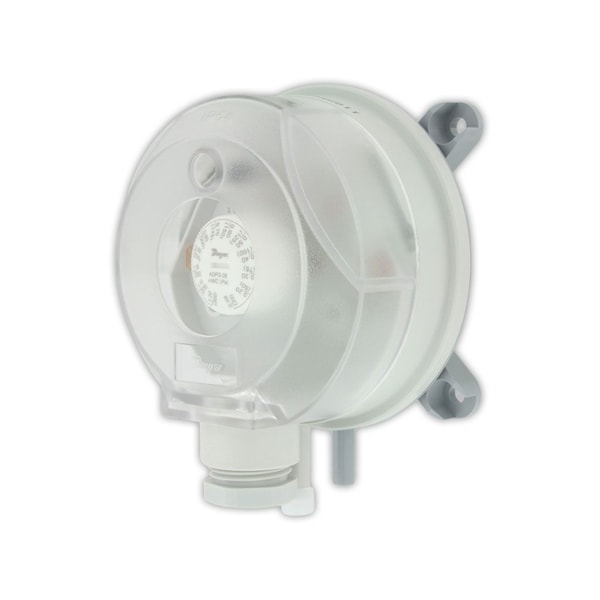

Dwyer Instruments Pressure Switch, Standard, SPDT, 0.08 to 1.20 in H2O Range EDPS-08-2-N - main

Pressure Switch, Standard, SPDT, 0.08 to 1.20 in H2O Range

  • Mfr # EDPS-08-2-N

  • Zoro # G107143416

product price:  $41.99
/ea

Key Features

Action
Standard
Contact Form
SPDT
Pressure Connection Type
Barbed
Range
0.08 to 1.2"wc
Housing Material
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EDPS-08-2-N
Zoro #
G107143416
UPC #
-
Country of Origin
Germany

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
Barbed
Range
0.08 to 1.2"wc
Housing Material
Nylon
Factory On Setting
0.08"wc
Factory Off Setting
1.2"wc
Standards
CE, ETL approved to UL508 and CSA C22.2#14
Features
Adjustment knob changes switching pressure easily with a pressure gage reducing components for application; Low cost device makes it an excellent solution in BAS and HVAC applications requiring duct control and monitoring; Relay contact allows simple integration with DDC or building systems
Wetted Materials
ADPS: Diaphragm material: Silicone; Housing material: POM; Switch body: PA 6.6; Cover: Polystyrene; EDPS: Diaphragm material: Silicone; Housing material: Switch body: PA 6.6; Cover: Polystyrene; Materials UL 94 V-0 rated.
Temperature Limits
Process and ambient temperature from -4 to 185°F (-20 to 85°C).
Service
Air and non-combustible, compatible gases.
Agency Approvals
CE, ETL approved to UL508 and CSA C22.2#14 (EDPS only).
Switch Type
Single-pole double-throw (SPDT).
Mechanical Working Life
Over 106 switching operations.
Process Connections
5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing.
Mounting Orientation
Vertically, with pressure connections pointing downwards.
Pressure Limits
Max. Operating Pressure: 40" w.c. (10 kPa) for all pressure ranges.
Storage
-40 to 185°F (-40 to 85°C).

Description

Adjustable differential pressure switch, range .08-1.20" w.c., with M20 connection.

Documents & Resources

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
