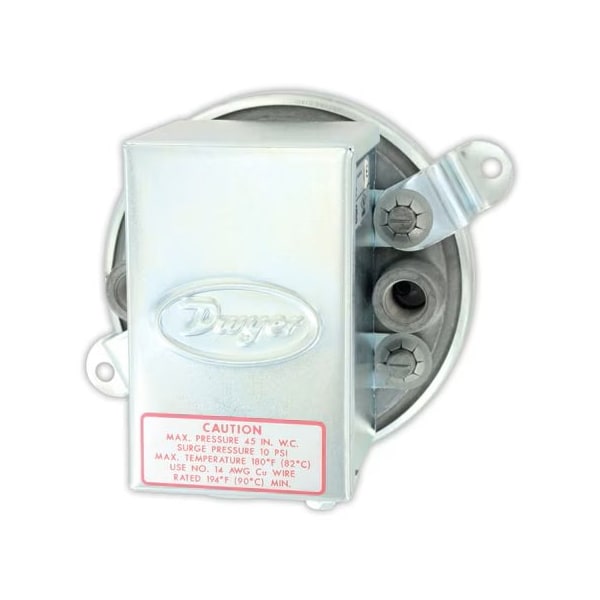

Pressure Switch, Standard, SPDT, 0.15 to .5 in H2O Range
Mfr # 1920-0
Zoro # G3219581
product price:Â $146.99
/ea
Free Shipping & Returns
Key Features
Action
Standard
Contact Form
SPDT
Range
0.15 to .5 in H2O
Standards
CE Listed, CSA, FM, UL Listed
Application
Frost and Ice Detection, Clogged or Dirty Filter Detection, Air Flow Control
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1920-0
- Zoro #
- G3219581
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Mounting Hole Diameter
- 3/16 in
- Sample Line Connection Size
- 1/8 in
Details
- Item
- Pressure Switch
- Action
- Standard
- Contact Form
- SPDT
- Range
- 0.15 to .5 in H2O
- Standards
- CE Listed, CSA, FM, UL Listed
- Application
- Frost and Ice Detection, Clogged or Dirty Filter Detection, Air Flow Control
- Electrical Connection
- Screw Terminals
- Weight
- 1 lb
- Mounting Orientation
- Vertical
- Pressure Setpoint Type
- Adjustable
- Mounting Hole Center to Center Distance
- 6 13/16 in
- Maximum Pressure Rating
- 45 in wc
- Maximum Differential Pressure Setting
- 0.5 in wc
- Sample Line Connector Type
- NPT
- Number of Switches
- 1
- Maximum Operating Temperature
- 180 Degrees F
- Input Voltage
- 120 to 480V AC, 125V AC, 250V AC
- Product Type
- Differential Pressure Switch
- Minimum Operating Temperature
- -30 Degrees F
- Pressure Type
- Differential
- Maximum Pressure Setting
- 0.5 in wc
- Minimum Pressure Setting
- 0.15 in wc
Description
Air Flow Switch, Application Frost and Ice Detection, Clogged or Dirty Filter Detection, Air Flow Control, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 1/4 hp @ 250 V AC, 60 Hz, 15 A @ 120 to 480 V AC, 60 Hz, Resistive 1/8 hp @ 125 V AC, Input Voltage 120 to 480V AC, 125V AC, 250V AC, Maximum Differential Pressure Setting 0.5 in wc, Maximum Operating Temperature 180 Degrees F, Maximum Pressure Rating 45 in wc, Maximum Pressure Setting 0.5 in wc
