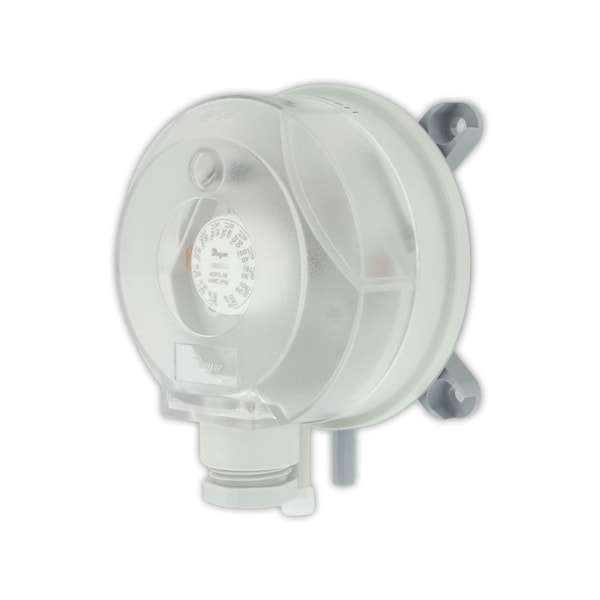

Pressure Switch, Standard, SPDT, 1/2" NPT, 0.20 to 2.00 in H2O Range
Mfr # EDPS-03-1-N
Zoro # G907143364
product price:Â
$
41.99
/ea
Key Features
Action
Standard
Contact Form
SPDT
Pressure Connection Type
5/16" Barbed
Range
.20-2.00" w.c.
Housing Material
Nylon
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- EDPS-03-1-N
- Zoro #
- G907143364
- UPC #
- -
- Country of Origin
- Germany
Details
- Item
- Pressure Switch
- Action
- Standard
- Contact Form
- SPDT
- Pressure Connection Type
- 5/16" Barbed
- Range
- .20-2.00" w.c.
- Housing Material
- Nylon
- Factory On Setting
- 0.2"wc
- Factory Off Setting
- 2"wc
- Standards
- CE, ETL approved to UL508 and CSA C22.2#14
- Features
- Adjustment knob changes switching pressure easily with a pressure gage reducing components for application; Low cost device makes it an excellent solution in BAS and HVAC applications requiring duct control and monitoring; Relay contact allows simple integration with DDC or building systems
- Wetted Materials
- ADPS: Diaphragm material: Silicone; Housing material: POM; Switch body: PA 6.6; Cover: Polystyrene; EDPS: Diaphragm material: Silicone; Housing material: Switch body: PA 6.6; Cover: Polystyrene; Materials UL 94 V-0 rated.
- Mounting Orientation
- Vertically, with pressure connections pointing downwards.
- Agency Approvals
- CE, ETL approved to UL508 and CSA C22.2#14 (EDPS only).
- Mechanical Working Life
- Over 106 switching operations.
- Temperature Limits
- Process and ambient temperature from -4 to 185°F (-20 to 85°C).
- Storage
- -40 to 185°F (-40 to 85°C).
- Pressure Limits
- Max. Operating Pressure: 40" w.c. (10 kPa) for all pressure ranges.
- Switch Type
- Single-pole double-throw (SPDT).
- Service
- Air and non-combustible, compatible gases.
- Process Connections
- 5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing.
Description
Adjustable differential pressure switch, range .20-2.00" w.c., with 1/2" NPT connection.
