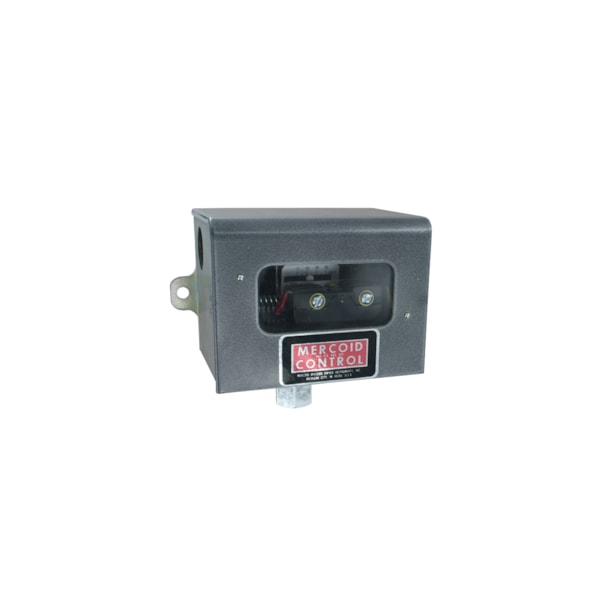

Pressure Switch, Standard, SPDT, 1/4" FNPT, Steel
Mfr # AP-7021-153-39
Zoro # G707143335
product price:Â
$
695.99
/ea
Free Shipping & Returns
Key Features
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/4 in FNPT
Range
10 to 125 psi
Housing Material
Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- AP-7021-153-39
- Zoro #
- G707143335
- UPC #
- -
- Country of Origin
- United States
Details
- Item
- Pressure Switch
- Action
- Standard
- Contact Form
- SPDT
- Pressure Connection Type
- 1/4 in FNPT
- Range
- 10 to 125 psi
- Housing Material
- Steel
- Factory On Setting
- 10 psi
- Factory Off Setting
- 125 psi
- Standards
- FM, UL
- Wetted Materials
- Nylon reinforced Buna-N and steel. PTFE and 316 SS optional.
- Features
- Explosion-proof and weatherproof housing provides device protection for outdoor use or harsh environment operation; External switch set point adjustment reduces set-up time
- Switch Type
- SPDT mercury switch or SPDT snap switch. Other switch types available.
- Set Point Adjustment
- External screw.
- Agency Approvals
- FM, UL. For FM consult factory.
- Conduit Connection
- 7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub.
- Mounting Orientation
- Vertical for mercury switch models, any position for snap switch models.
- Temperature Limits
- -30 to 150°F (-35 to 66°C).
Description
Diaphragm operated pressure switch, range 10-125 psig (.69-8.6 bar), SPDT snap switch, low deadband 3 psig (0.21 bar), high deadband 7 psig (0.48 bar), max. pressure 160 psig (11.0 bar).
