Shop DWYER INSTRUMENTS

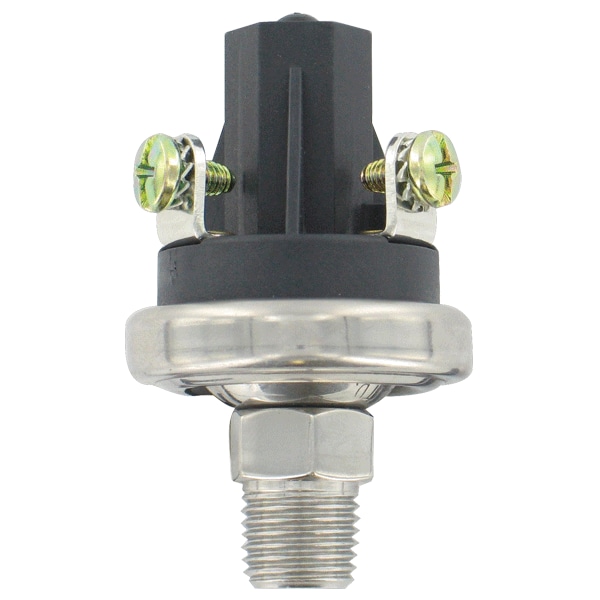

Pressure Switch, Standard, SPDT, 1/4" MNPT, 8 to 13 psi Range, Brass

  • Mfr # A6-451221

  • Zoro # G807143457

product price:
$
35.59
/ea

Key Features

Action
Standard
Contact Form
SPST
Pressure Connection Type
1/4 in MNPT
Range
0.5 to 17.5 psi
Housing Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A6-451221
Zoro #
G807143457
UPC #
-
Country of Origin
China

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPST
Pressure Connection Type
1/4 in MNPT
Range
0.5 to 17.5 psi
Housing Material
Brass
Factory On Setting
0.5 psi
Factory Off Setting
17.5 psi
Standards
CE
Features
High switch cycle means long life for extended duty applications; Mounting in any position and feature simple makes a reliable switching for equipment and OEM applications
Wetted Materials
Base: 304 SS, Diaphragm: polyimide film.
Repeatability
±10% of set point.
Mounting Orientation
Switch can be installed in any position.
Agency Approvals
CE.
Service
Air, motor oils, transmission oils, jet fuels, and similar hydrocarbon media. (Not for water use).
Switch Type
1 SPST NO, 1 SPST NC. NO and NC switch independent from each other.
Pressure Limits
Operating Pressure: 150 psi (10.3 bar) for 0.5-24 psi set point ranges, 250 psi (17.2 bar) for 25-150 psi set-point ranges. Proof Pressure: 500 psi (34.5 bar). Burst Pressure: 750 psi (51.7 bar) for 0.5-24 psi set point ranges, 1250 psi (86.2 bar) for 25-150 psi set point ranges.
Temperature Limits
-40 to 248°F (-40 to 120°C).
Set Point Adjustment
Screw.

Description

Durable brass pressure switch, adjustable from 8 to 13 psi, SPDT, 1/4" NPT male connection.
