  13. Pressure Switch, Standard, SPDT, 1/8" FNPT, 0.07 to 0.15 in H2O Range

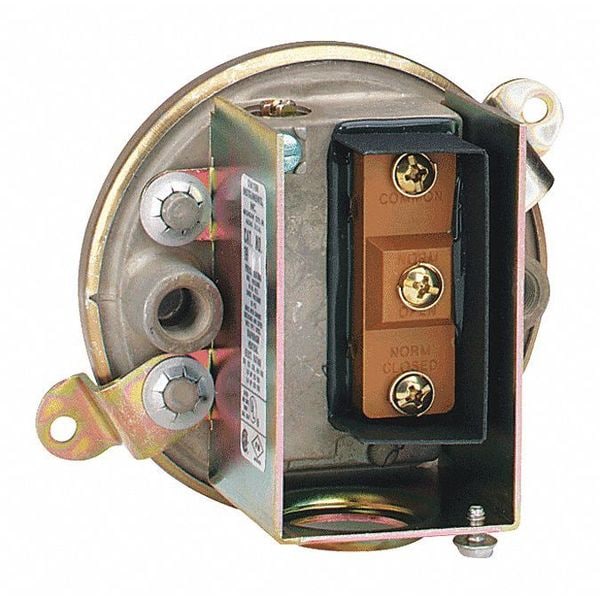

Dwyer Instruments Pressure Switch, Standard, SPDT, 1/8" FNPT, 0.07 to 0.15 in H2O Range 1910-00 - main

CAD Viewer & Download Files

Pressure Switch, Standard, SPDT, 1/8" FNPT, 0.07 to 0.15 in H2O Range

  • Mfr # 1910-00

  • Zoro # G0562488

CAD Available
product price: $106.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8" FNPT
Range
0.07 to 0.15 in H2O
Standards
CE, CSA, FM, RoHS, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1910-00
Zoro #
G0562488
UPC #
-
Country of Origin
United States

Dimensions

Overall Diameter
3 1/2 in
Sample Line Connection Size
1/8 in
Mounting Hole Diameter
3/16 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8" FNPT
Range
0.07 to 0.15 in H2O
Standards
CE, CSA, FM, RoHS, UL Listed
Electrical Connection
Screw Terminals
Process Connection
1/8" female NPT.
Application
Frost and Ice Detection, Clogged or Dirty Filter Detection, Air Flow Control
Pressure Switch Range
0.07 to 0.15 in H2O
Mounting Orientation
Vertical
Maximum Differential Pressure Setting
0.15 in wc
Mounting Hole Center to Center Distance
4 3/16 in
Pressure Type
Differential
Minimum Operating Temperature
-30 Degrees F
Pressure Setpoint Type
Adjustable
Product Type
Differential Pressure Switch
Maximum Operating Temperature
180 Degrees F
Weight
1 lb
Sample Line Connector Type
NPT
Maximum Pressure Rating
45 in wc
Minimum Pressure Setting
0.07 in wc
Maximum Pressure Setting
0.15 in wc
Set Point Adjustment
Screw type inside conduit enclosure.
Agency Approvals
CE, CSA, FM, UL. Optional EXPL Explosion-proof enclosure does not possess any agency approvals.
Service
Air and non-combustible, compatible gases.
Repeatability
±3%.
Temperature Limits
-30 to 180°F (-34 to 82.2°C).
Switch Type
Single-pole double-throw (SPDT).
CAD Available
Yes

Description

Air Pressure Switch, Application Frost and Ice Detection, Clogged or Dirty Filter Detection, Air Flow Control, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 1/4 HP @ 250 V AC, 60 Hz, 1/8 HP @ 125 V AC, 15 A @ 120 to 480 V AC, 60 Hz Resistive, Derate to 10 A for Operation at High Cycle Rates, Maximum Differential Pressure Setting 0.15 in wc, Maximum Operating Temperature 180 Degrees F, Maximum Pressure Rating 45 in wc, Maximum Pressure Setting 0.15 in wc
