Shop DWYER INSTRUMENTS

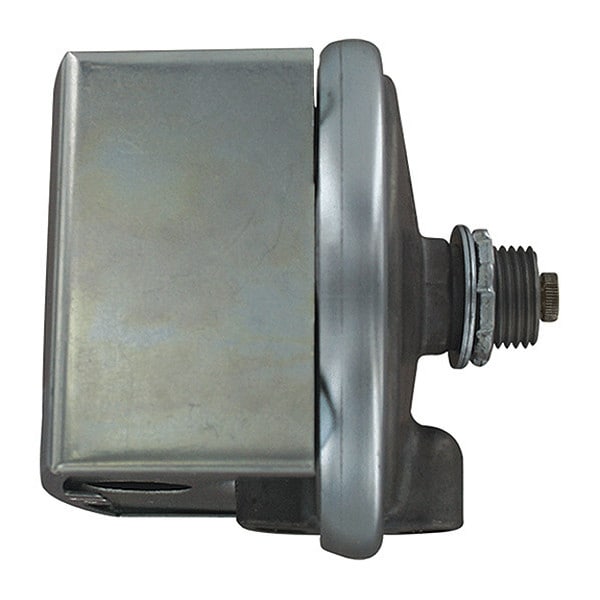

Pressure Switch, Standard, SPDT, 1/8" FNPT, 2.0 to 10 in H2O Range

  • Mfr # 1823-10

  • Zoro # G3219548

product price:  $133.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8 in FNPT
Range
2.0-10" w.c.
Factory On Setting
2"wc
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1823-10
Zoro #
G3219548
UPC #
-
Country of Origin
United States

Dimensions

Overall Diameter
4 in
Sample Line Connection Size
1/8 in
Mounting Hole Diameter
5/16 in
Overall Depth
3 7/8 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/8 in FNPT
Range
2.0-10" w.c.
Factory On Setting
2"wc
Factory Off Setting
10"wc
Standards
CE, CSA, FM, RoHS, UL Listed
Process Connection
1/8" female NPT.
Electrical Connection
Screw Terminals
Features
Compact size and repeatability provide a high-value switch for many industrial applications; Designed for panel and wall mounting to easily meet mounting requirements in most industrial settings; Pressure ranges from 0.07 in w.c. to 85 in w.c. make this switch suitable for a wide range of applications
Mounting Orientation
Vertical
Weight
1 lb
Maximum Differential Pressure Setting
10 in wc
Mounting Hole Center to Center Distance
4 in
Pressure Type
Differential
Pressure Setpoint Type
Adjustable
Product Type
Differential Pressure Switch
Sample Line Connector Type
NPT
Maximum Pressure Rating
10 psig
Minimum Pressure Setting
2 in wc
Maximum Pressure Setting
10 in wc
Agency Approvals
CE, CSA, FM, UL. NOTE: Optional (-EXPL) Explosion-proof Enclosure does not possess any agency approvals.
Service
Air and non-combustible, compatible gases.
Repeatability
±2%.
Switch Type
Single-pole double-throw (SPDT).
Temperature Limits
-30 to 180°F (-34 to 82.2°C). 1823-00, -20 to 180°F (-28.9 to 82.2°C).
Set Point Adjustment
Screw type inside mounting spud.
Electrical Rating
1/4 HP @ 250 V AC, 60 Hz, 1/8 HP @ 125 V AC, 15 A @ 120 to 480 V AC, 60 Hz Resistive, Derate to 10 A for Operation at High Cycle Rates
Electrical Connection Type
Screw Terminals
Minimum Differential Pressure Setting
2 in wc

Description

Differential Pressure Switch 2.0-10.0 In, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 1/4 HP @ 250 V AC, 60 Hz, 1/8 HP @ 125 V AC, 15 A @ 120 to 480 V AC, 60 Hz Resistive, Derate to 10 A for Operation at High Cycle Rates, Maximum Differential Pressure Setting 10 in wc, Maximum Pressure Rating 10 psig, Maximum Pressure Setting 10 in wc, Minimum Differential Pressure Setting 2 in wc, Minimum Pressure Setting 2 in wc, Mounting Hole Center to Center Distance 4 in
