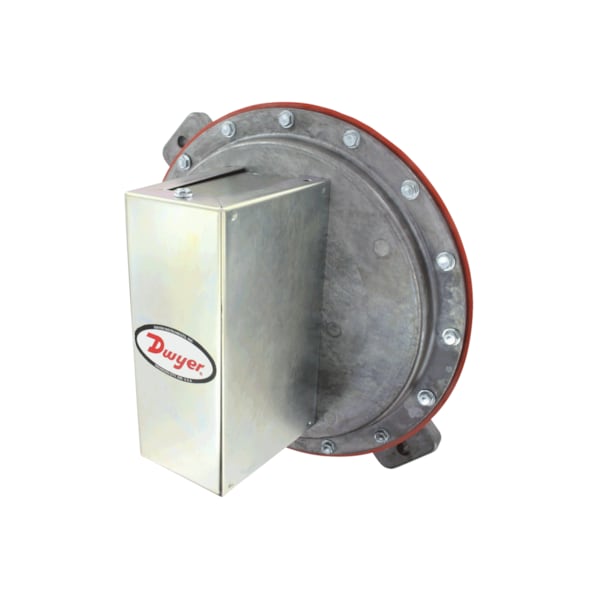

Pressure Switch, Standard, SPDT, 1/8" FNPT, 2.0 to 11 in H2O Range

Mfr # 1626-10
Zoro # G107143492

559.99

Free Shipping & Returns

Key Features

Action

Standard

Contact Form

SPDT

Pressure Connection Type

1/8 in FNPT

Range

2.0-11" w.c.

Factory On Setting

2"wc

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 1626-10
Zoro #: G107143492
UPC #: -
Country of Origin: United States

Details

Item: Pressure Switch
Action: Standard
Contact Form: SPDT
Pressure Connection Type: 1/8 in FNPT
Range: 2.0-11" w.c.
Factory On Setting: 2"wc
Factory Off Setting: 11"wc
Standards: CE
Features: Single or dual action switches support consistent designs with similar models, but with the ability to match specific application needs; Sealed diaphragm provides leak-proof construction for high accuracy and precision control
Service: Air and non-combustible, compatible gases.
Switch Type: 1626: SPDT; 1627: (2) SPDT.
Set Point Adjustment: Screw adjustment.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Agency Approvals: CE.
Temperature Limits: -30 to 130°F (-34.4 to 54.4°C).
Pressure Limits: Max. 50 in. w.c. (12.44 kPa) continuous, 2 psig (13.79 kPa) surge.
Process Connections: 1/8" female NPT.
Repeatability: ±1%.

Description

Single pressure switch, range 2.0-11" w.c., .25 min. deadband, .65 max. deadband, 2.3 adj. diff. between set points.
