Shop DWYER INSTRUMENTS

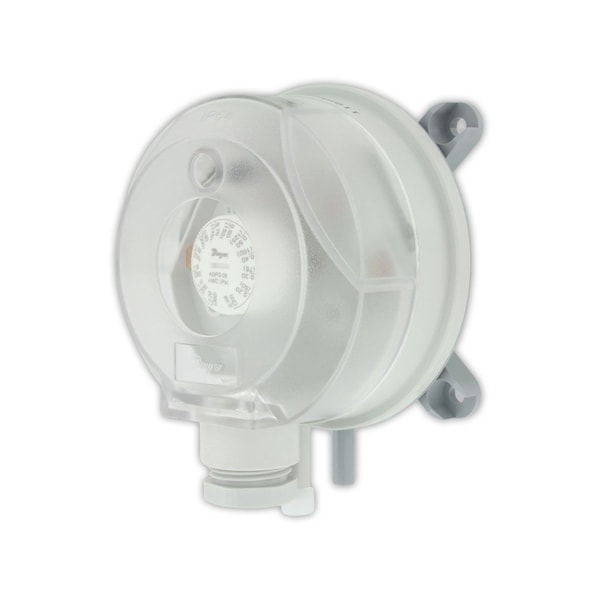

Pressure Switch, Standard, SPDT, M20, 2 to 10 in H2O Range

  • Mfr # EDPS-06-2-N

  • Zoro # G907143395

product price:  $41.85
/ea

Key Features

Action
Standard
Contact Form
SPDT
Pressure Connection Type
5/16" Barbed
Range
2 to 10"wc
Housing Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EDPS-06-2-N
Zoro #
G907143395
UPC #
-
Country of Origin
Germany

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
5/16" Barbed
Range
2 to 10"wc
Housing Material
Nylon
Factory On Setting
2"wc
Factory Off Setting
10"wc
Standards
CE, ETL approved to UL508 and CSA C22.2#14
Wetted Materials
ADPS: Diaphragm material: Silicone; Housing material: POM; Switch body: PA 6.6; Cover: Polystyrene; EDPS: Diaphragm material: Silicone; Housing material: Switch body: PA 6.6; Cover: Polystyrene; Materials UL 94 V-0 rated.
Features
Adjustment knob changes switching pressure easily with a pressure gage reducing components for application; Low cost device makes it an excellent solution in BAS and HVAC applications requiring duct control and monitoring; Relay contact allows simple integration with DDC or building systems
Service
Air and non-combustible, compatible gases.
Process Connections
5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing.
Switch Type
Single-pole double-throw (SPDT).
Agency Approvals
CE, ETL approved to UL508 and CSA C22.2#14 (EDPS only).
Mechanical Working Life
Over 106 switching operations.
Pressure Limits
Max. Operating Pressure: 40" w.c. (10 kPa) for all pressure ranges.
Temperature Limits
Process and ambient temperature from -4 to 185°F (-20 to 85°C).
Mounting Orientation
Vertically, with pressure connections pointing downwards.
Storage
-40 to 185°F (-40 to 85°C).

Description

Adjustable differential pressure switch, range 2.00-10.00" w.c., with M20 connection.

Documents & Resources

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
