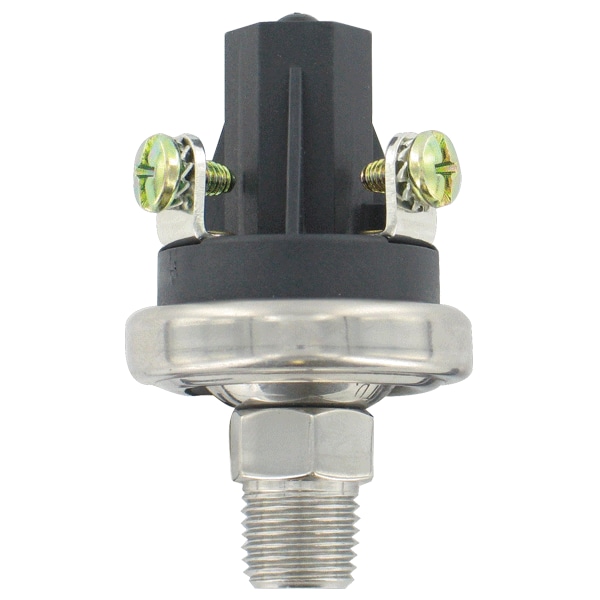

Pressure Switch, Standard, SPST, 1/4" MNPT, 18-8 Stainless Steel
Mfr # A6-753221
Zoro # G207143361
CAD Available
product price: $41.15
/eaKey Features
CAD Drawing
Action
Standard
Contact Form
SPST
Pressure Connection Type
1/4" MNPT
Housing Material
18-8 Stainless Steel
Standards
CE
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
A6-753221
Zoro #
G207143361
UPC #
-
Country of Origin
China
Details
Item
Pressure Switch
Action
Standard
Contact Form
SPST
Pressure Connection Type
1/4" MNPT
Housing Material
18-8 Stainless Steel
Standards
CE
Features
High switch cycle means long life for extended duty applications; Mounting in any position and feature simple makes a reliable switching for equipment and OEM applications
Wetted Materials
Base: 304 SS, Diaphragm: polyimide film.
Switch Type
1 SPST NO, 1 SPST NC. NO and NC switch independent from each other.
Set Point Adjustment
Screw.
Service
Air, motor oils, transmission oils, jet fuels, and similar hydrocarbon media. (Not for water use).
Temperature Limits
-40 to 248°F (-40 to 120°C).
Repeatability
±10% of set point.
Agency Approvals
CE.
Mounting Orientation
Switch can be installed in any position.
Pressure Limits
Operating Pressure: 150 psi (10.3 bar) for 0.5-24 psi set point ranges, 250 psi (17.2 bar) for 25-150 psi set-point ranges. Proof Pressure: 500 psi (34.5 bar). Burst Pressure: 750 psi (51.7 bar) for 0.5-24 psi set point ranges, 1250 psi (86.2 bar) for 25-150 psi set point ranges.
