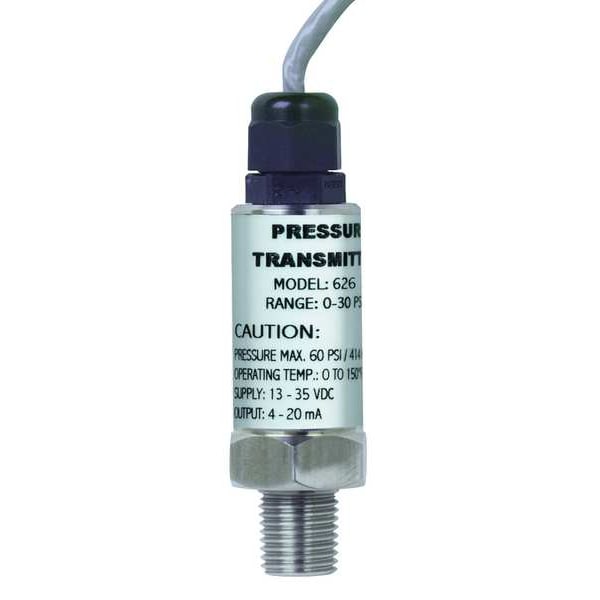

Dwyer Instruments Pressure Transmitter, 0-30psi, 36 In Lead 626-08-GH-P1-E1-S1 - main

Pressure Transmitter, 0-30psi, 36 In Lead

  • Mfr # 626-08-GH-P1-E1-S1

  • Zoro # G0056472

product price:  $225.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.25% of Full Scale
Housing Material
Stainless Steel
Output
4 to 20mA DC
Electrical Connections
Cable & Wire Leads
Process Connection
1/4 in Male NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
626-08-GH-P1-E1-S1
Zoro #
G0056472
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Manufacturers Warranty Length
1 yr
Lead Length (In.)
36
Process Connection Size - Transmitter
1/4 in
Overall Width
5.5 in
Cable Length
3 ft
Overall Height
3.5 in
Overall Length
1.281 in

Details

Item
Pressure Transmitter
Accuracy
+/-0.25% of Full Scale
Housing Material
Stainless Steel
Output
4 to 20mA DC
Electrical Connections
Cable & Wire Leads
Process Connection
1/4 in Male NPT
Process Connection Type
NPT
Operating Temp.
0 to 200 F
Power Required
10 to 30V DC
Response Time
300 msec
Series
626
Range Units - Transmitter
psi
Max. Pressure (PSI)
60 psi
Operating Temp. - Transmitter
0 Degrees to 200 Degrees F
Compatible With
Liquids and Gas
Range Values - Transmitter
0 to 30
Power Required - Transmitters
13 to 30V DC
Loop Resistance
0 to 1300 ohms
Wetted Materials
316 SS and 316L SS
Process Connection Type - Transmitter
MNPT
Electrical Connections - Transmitter
3 ft Cable
Includes
Instructions
Housing
Stainless Steel
Thermal Error
+/-0.02%
Wetted Materials - Transmitters
316 Stainless Steel, 316L Stainless Steel
Wiring Entry - Transmitter
1/2 in FNPT
Transmitter Type
Pressure Transmitter
Accuracy - Transmitter
+/-0.25% Full Scale
Range
0 to 30 psi
NEMA Rating
NEMA 4X
Output - Transmitter
4 to 20mA DC
Features
Protection in Harsh Environments, Shock and Vibration Resistance, Wide Range of Models and Connections That can Meet Pressure Measurement Specifications From Low to Very High
Maximum Pressure
30 psi
Overpressure
300 psig
Electrical Connection
Cable
Wiring Entry
Cable Gland
Type of Pressure
Gauge
Intrinsically Safe
No
Minimum Pressure
0 psi
Standards
CE, NSF, UL Listed
For Use With Media Type
Compressors, Hydraulics, Pumps
Minimum Operating Temperature
0 Degrees F
Weight
10 oz
IP Rating
IP66
Explosion/Fire Proof
No
NIST Traceable Certificate
No
Process Connection Gender
Male
Maximum Operating Temperature
200 Degrees F
Maximum Loop Resistance
0 to 1,000 Ohm Max
Number of Wires
2
Pressure Units
psig
NEMA Enclosure Rating
4X
Loop Resistance - Maximum
0 to 1,000 Ohm Max
Pressure Measurement - Minimum
0 psi
Process Media Temperature - Maximum
200 Degrees F
Process Media Temperature - Minimum
0 Degrees F
Pressure Type Measured
Gauge
Intrinsic Safety
Not Specified Intrinsically Safe
Input Voltage
10 to 30V DC
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Pressure Measurement - Maximum
30 psi
Output Power
4 to 20mA DC

Description

Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 30 psi, Electrical Connections Cable & Wire Leads, Output 4 to 20mA DC, Accuracy +/-0.25 Percent of Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 10 to 30V DC, NEMA Rating NEMA 4X, IP Rating IP66, Series 626, Wiring Entry Cable Gland, Maximum Operating Temperature 200 Degrees F, Minimum Operating Temperature 0 Degrees F
