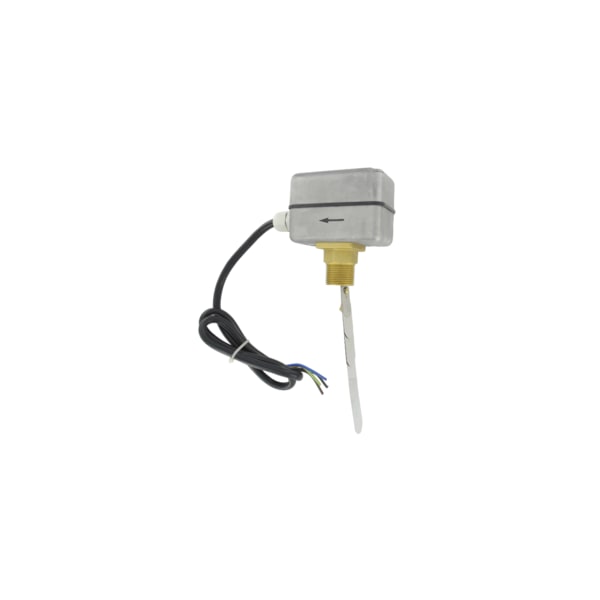

Replacement vane assembly, Paddle Fl Sw 8'Leads
- Mfr # FS-2-VANE
- Zoro # G007149204
product price:Â
$
22.89
/ea
Key Features
Features
Field adjustable set point adjustment screw allows for easy flow switch modification; Custom application set points enabled by field adjustable vane layers; Aluminum weatherproof housing permits outdoor installation
Mounting Orientation
Switch must be installed vertically on horizontal pipe runs.
Service
Compatible liquids.
Temperature Limits
230°F (110°C).
Electrical Rating
10 A res, 3 A ind @ 250 VAC.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- FS-2-VANE
- Zoro #
- G007149204
- UPC #
- -
- Country of Origin
- China
Details
- Features
- Field adjustable set point adjustment screw allows for easy flow switch modification; Custom application set points enabled by field adjustable vane layers; Aluminum weatherproof housing permits outdoor installation
- Mounting Orientation
- Switch must be installed vertically on horizontal pipe runs.
- Service
- Compatible liquids.
- Temperature Limits
- 230°F (110°C).
- Electrical Rating
- 10 A res, 3 A ind @ 250 VAC.
- Enclosure Rating
- NEMA 4 (IP64).
- Switch Type
- SPDT snap switch.
- Set Point Adjustment
- Four vane combinations and an adjustment screw.
- Wetted Materials
- Bellow: Tin-bronze; Vane: SS; Body: Forged brass.
- Process Connection
- 1" male NPT or BSPT.
- Pressure Limits
- 145 psig (10 bar).
- Agency Approvals
- CE.
