  13. Water level control, cast iron chamber, SPDT snap switch.

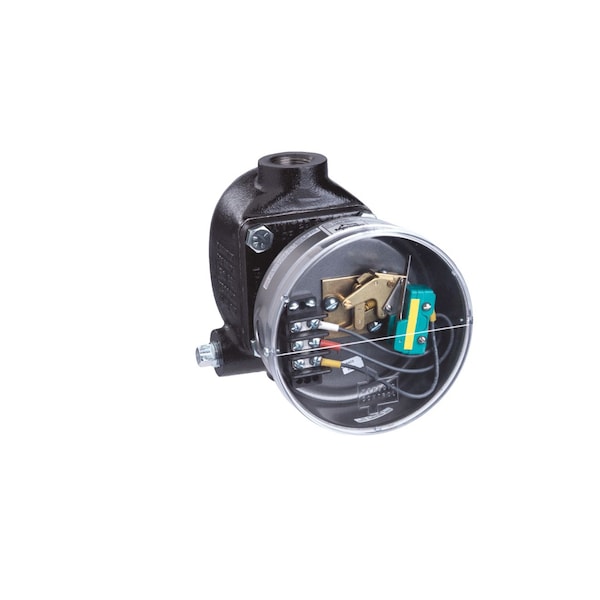

Dwyer Instruments Water level control, cast iron chamber, SPDT snap switch. 123-7000-153 - main

Water level control, cast iron chamber, SPDT snap switch.

  • Mfr # 123-7000-153

  • Zoro # G107149135

product price: $760.99
/ea
Free Shipping & Returns

Key Features

Deadband
Approximately 1-1/2" (38.1 mm).
Pressure Limit
150 psig (10.34 bar).
Switch Type
SPDT snap switch or mercury switch. Optional DPDT or two stage.
Agency Approvals
CSA, UL. (Snap switch is not rated).
Electrical Rating
Snap switch: 15 A @ 120/240/480 VAC, 0.5 A @ 120 VDC resistive, 0.25 A @ 240 VDC resistive. Mercury switch: 4 A @ 120 VAC/DC, 2 A @ 240 VAC/DC.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
123-7000-153
Zoro #
G107149135
UPC #
-
Country of Origin
United States

Details

Deadband
Approximately 1-1/2" (38.1 mm).
Pressure Limit
150 psig (10.34 bar).
Switch Type
SPDT snap switch or mercury switch. Optional DPDT or two stage.
Agency Approvals
CSA, UL. (Snap switch is not rated).
Electrical Rating
Snap switch: 15 A @ 120/240/480 VAC, 0.5 A @ 120 VDC resistive, 0.25 A @ 240 VDC resistive. Mercury switch: 4 A @ 120 VAC/DC, 2 A @ 240 VAC/DC.
Wetted Materials
Body: Cast iron. Float: 304 SS. Trim and packing gland: Brass. Packing: Carbon. Body gasket: Carbon.
Conduit Connection
7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit.
Electrical Connections
Screw terminal.
Process Connections
1" female NPT.
Service
Compatible liquids. Cast iron is not for use with lethal or flammable substances either liquid or gaseous.
Mounting Orientation
Vertical.
Temperature Limit
Ambient Temperature: 212°F (100°C);Process Temperature: 365°F (185°C).
Enclosure Rating
General purpose. Optional weatherproof.

Description

Water level control, cast iron chamber, SPDT snap switch.
