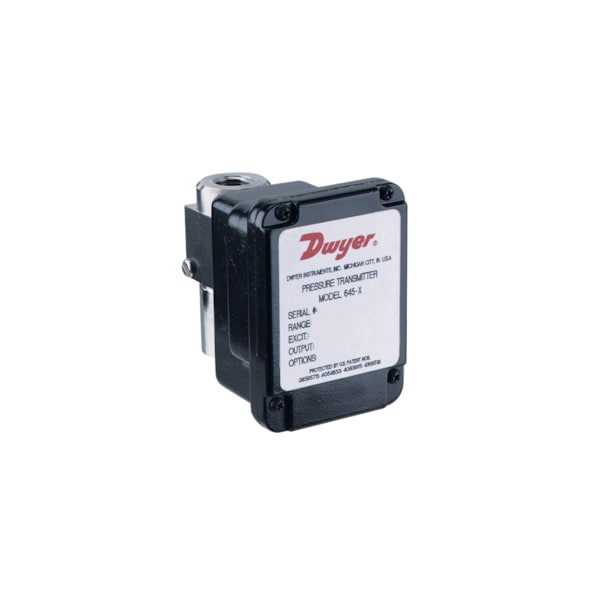

Wet/wet differential pressure transmitter, range 0-1 psid.

  • Mfr # 645-0
  • Zoro # G3268855
product price:
$
1,257.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.25% of Full Scale
Process Connection Size
1/4 in
Process Connection Type
Threaded
Series
645
Gauge Operating Temp. Range
-4 Degrees to 185 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
645-0
Zoro #
G3268855
UPC #
-
Country of Origin
United States
Item
Differential Transmitter
Accuracy
+/-0.25% of Full Scale
Process Connection Type
Threaded
Series
645
Gauge Operating Temp. Range
-4 Degrees to 185 Degrees F
Output
4 to 20mA DC
Range
0 to 1 psid
Power Required
11 to 30V DC
Pressure Range
0 to 1 psid
Features
Optional 3-Way Valve Manifold
Weight
0.9 lb
Standards
CE
Electrical Connections
Screw Terminals
NEMA Rating
NEMA 4X
Wetted Materials
17-4 PH Stainless Steel
Thermal Error
+/-0.02%
Maximum Loop Resistance
1000 Ohm
Pressure Units
psid
Storage Temperature Range
-65 Degrees F to 260 Degrees F
Number of Wires
2
IP Rating
IP56
NIST Traceable Certificate
No
Minimum Pressure
0 psid
Overpressure
2.5x Range
For Use With Media Type
Gas, Liquid
Minimum Operating Temperature
0 Degrees F
Housing Material
Aluminum, Stainless Steel
Maximum Operating Temperature
175 Degrees F
Response Time
50 msec
Process Connection Gender
Female
Maximum Pressure
1 psid
Operating Temperature Range
-4 Degrees to 185 Degrees F
Pressure Units Measured
psid

Description

Differential Transmitter, Output 4 to 20mA DC, Minimum Pressure 0 psid, Maximum Pressure 1 psid, Overpressure 2.5x Range, Accuracy +/-0.25 Percent of Full Scale, Number of Wires 2, Process Connection Gender Female, Process Connection Size 1/4 in, Process Connection Type Threaded, Power Required 11 to 30V DC, IP Rating IP56, NEMA Rating NEMA 4X, Series 645, Housing Material Aluminum, Stainless Steel, Electrical Connections Screw Terminals, Features Optional 3-Way Valve Manifold
