Coupler, Mega-Flow, 1/4, Composite
- Mfr # 97566
- Zoro # G3682883
Key Features
Specifications
Details
- MFR #
- 97566
- Zoro #
- G3682883
- UPC #
- 616026975668
- Country of Origin
- United States
- Item
- Quick Connect Air Coupling
- Interchange Type
- Universal
- Material
- Composite
- Coupling Component
- Socket
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Finish/Coating
- Composite
- Max. Flow Rate
- 1,558 lpm
- Coupling Locking Type
- Safety Vent
- Includes Valve
- Yes
- Color
- Black
- Color Code
- Black
- Valve Type
- Flush Face
- Max. Working Pressure @ 70 F
- 175 psi
- For Use With
- Air Powered Tools
- Barbed
- No
- Connection Thread Type
- NPT
- Shell Material
- Composite
- Wire Color
- Black
- Compatible Product Type
- Air Powered Tools
- Traction Material
- Composite
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Overall Length
- 2 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Wire Rope Length
- 2 in
- Length
- 2 in
Description

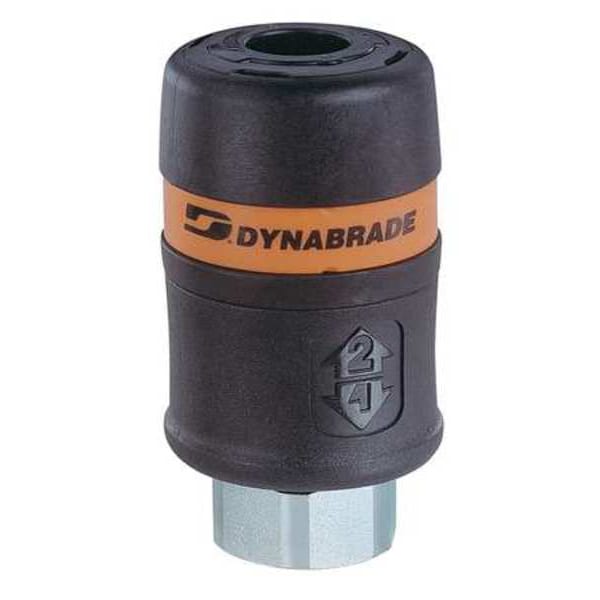

The DYNABRADE - 97566 is a hose coupling designed to provide a push/pull locking mechanism for hose connection and disconnection. It uses a push/pull locking mechanism with a safety vent feature, providing a sealed and leak-resistant joint for fluid or air lines. The fitting is constructed from composite material, finished with a composite coating, and is primarily black in color. It includes an integrated flush face valve and has a 1/4 in nominal body and coupling size, with female hose fitting and a 1/4" -18 thread size utilizing the NPT connection type. Compatible with interchange types 95677, 96005, and 95675, and is compatible for use with air powered tools.
Key Features:
- Body Size and Coupling Size: 1/4 in nominal diameter.
- Hose Fitting Gender: Female.
- Connection Type: NPT threads.
- Includes Valve: Yes, with a flush face valve type.
- Coupling Locking Type: Safety Vent mechanism.
- Max. Flow Rate: 1,558 liters per minute.
- Maximum working pressure (measured at 70°F): 175 psi.
- Overall Length: 2 in.
- Material and Finish: Composite construction with composite coating.
- Color and Color Code: Black.
- Compatible Interchange Types: 95677, 96005, 95675.
