  11. 3" FNPT Brass Pneumatic Ball Valve Inline

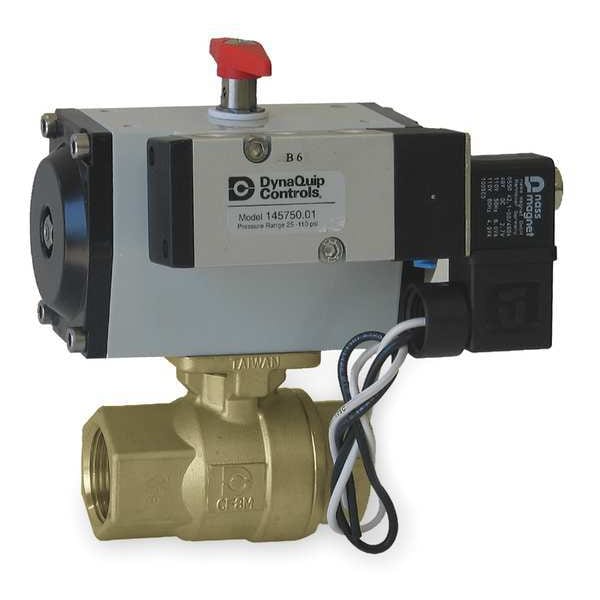

Dynaquip Controls 3" FNPT Brass Pneumatic Ball Valve Inline PHH2AATDA075A - main

3" FNPT Brass Pneumatic Ball Valve Inline

  • Mfr # PHH2AATDA075A

  • Zoro # G3416987

product price: $1,384.99
/ea
Free Shipping & Returns

Key Features

Body Material
Brass
Standards
TSSA, MSS-SP 110, CSA
Overall Length
6.89 in
Ball Valve Basic Body Material
Brass
Operation
Double Acting
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PHH2AATDA075A
Zoro #
G3416987
UPC #
649848036798
Country of Origin
Multiple

Dimensions

Overall Length
6.89 in
Pipe Size
3 in
Connection Size - Side 2
3 in
Nominal Valve Size
3 in
Connection Size - Side 1
3 in

Details

Item
Pneumatically Actuated Two-Way Ball Valve
Body Material
Brass
Standards
TSSA, MSS-SP 110, CSA
Ball Valve Basic Body Material
Brass
Operation
Double Acting
Ball Material
Chrome-Plated Brass
Stem Material
Nickel-Plated Brass
Seat Material
FKM
Body Style
Inline
Port
Full
Temp. Range
-4 Degrees to 176 Degrees F
Valve Structure
2-Piece
Mount
Direct
Ball Valve Product Group
Actuated
Connection Type
FNPT
Body Seal Material
PTFE/Viton
Max. Pressure
600 psi CWP
Required Pressure
80 psi
Max. Inlet Pressure
120 psi
Seal Material
FKM
Included Pilot Solenoid
115V AC Pilot Solenoid
Valve Body Style
Straight
Valve Construction
Two-Piece
Valve Ways
2-Way
3-A Standard Compliance
Not Rated
Vented Ball Valve
Non-Vented
For Media
Air, Oil, Water
Actuator Air Pressure - Maximum
315 psi
Actuator Air Pressure - Minimum
95 psi
Actuator Series
HP
Actuator Features
Position Indicator
Included Mounting
Actuator Mounting Pad
Maximum Pressure - Combustible Gas
Not Rated
Vacuum Service Rating
29 in Hg
Maximum Pressure - Operating
600 psi
Actuator Operation
Air to Air
Maximum Pressure - Steam
150 psi
Ball Port Style
Full Port
Maximum Operating Pressure Differential
300 psi
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
370 Degrees F
Connection Gender - Side 2
Female
Connection Gender - Side 1
Female
IP Rating
IP65
Coefficient of Volume (Cv)
260
Actuator Ambient Temperature - Minimum
-4 Degrees F
Actuator Ambient Temperature - Maximum
176 Degrees F
Connection Type - Side 1
NPT
Connection Type - Side 2
NPT
Manufacturer Warranty
2 yr
Fail Safe Position
Fail Last
NEMA Enclosure Rating
4, 4X
Valve Deactivated State
Normally Closed (NC), Normally Open (NO)
Valve Series
PHH

Description

Pneumatically Actuated Two-Way Ball Valve, Nominal Valve Size 3 in, Actuator Operation Air to Air, Ball Material Chrome-Plated Brass, Valve Deactivated State Normally Closed (NC), Normally Open (NO), Fail Safe Position Fail Last, Included Pilot Solenoid 115V AC Pilot Solenoid, Valve Body Style Straight, Body Material Brass, Average Surface Roughness (Ra) Not Applicable, Ball Port Style Full Port, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi
