Shop DYNAQUIP CONTROLS

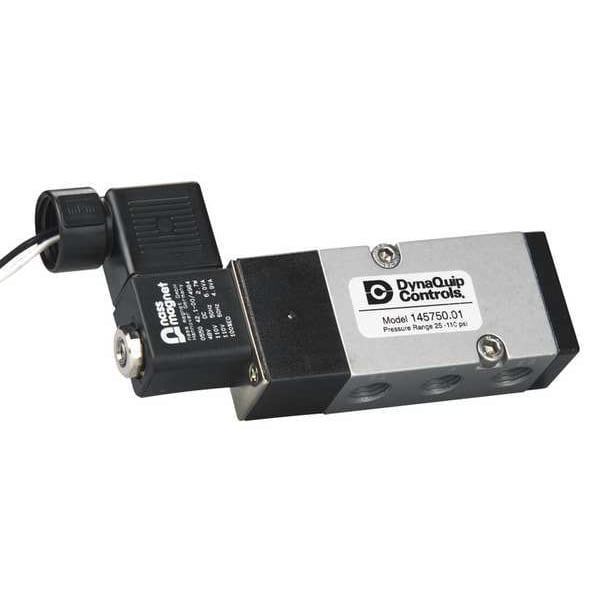

Solenoid Air Control Valve, 1/4 In, 12VDC

  • Mfr # 145750.04

  • Zoro # G5189721

product price:
$
165.99
/ea
Free Shipping & Returns

Key Features

Body Style
Body-Ported
Series
Dynaquip
Voltage
12V DC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
24.6 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
145750.04
Zoro #
G5189721
UPC #
649848056024
Country of Origin
Italy

Dimensions

Overall Height
4 in
Overall Width
2 in
Pilot Port Size
1/4 in NPT
Pipe Size
1/4 in
Overall Length
2 in
Pilot Port Connection Size
1/4 in
Exhaust Port Connection Size
1/4 in
Inlet Port Connection Size
1/4 in
Wire Rope Length
2 in
Length
2 in

Details

Item
Solenoid Air Control Valve
Body Style
Body-Ported
Series
Dynaquip
Voltage
12V DC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
24.6 psi
Power Consumption
3 W
Coefficient of Volume
1.4
Body Material
Aluminum
Override
Non-Locking
Actuator/Return
Solenoid/Spring
Valve Ways and Positions
4-Way/2-Position
Max. CFM - Valves
78.4 cfm
Air Valve Type
4-Way, 2-Position
Ambient Temp. Range
14 Degrees to 122 Degrees F
Pressure Range
37 to 150 psi
Operational Pressure Range
37 to 150 psi
NEMA Classification
NEMA 4, 4X
Number of Positions
Two-Position
Number of Ways
Four-Way
Inlet Port Connection Type
NPT
Poppet Material
Aluminum
Pilot Type
Internal Pilot
Operating Pressure - Maximum
116 psi
Electrical Connection Type
DIN Solenoid Connector
NEMA Rating
4, 4X
Operating Pressure - Minimum
22 psi
Inlet Port Connection Gender
Female
Spool Material
Stainless Steel
Flow Rate - Maximum
78.4 cfm
Valve Type
Poppet
Actuator Type
Single Solenoid
Coefficient of Volume (Cv)
1.4
Body Features
Single
Return Action
Spring Return
Exhaust Port Connection Gender
Female
Number of Ports
5
Operating Temperature - Minimum
23 Degrees F
Includes Solenoid Coil
Solenoid Coil Included
Exhaust Port Connection Type
NPT
Vacuum Rating
Not Vacuum Operable
Valve Action
Normally Closed
Includes Mounting Hardware
Hardware Included
Pilot Port Connection Type
NPT
Pilot Port Connection Gender
Female
Operating Temperature - Maximum
140 Degrees F
Product Type
Solenoid Air Control Valve
Fail Position
Closed

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 12V DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Pipe Size 1/4 in, Max. CFM - Valves 78.4 cfm, Operational Pressure Range 37 to 150 psi, NEMA Classification NEMA 4, 4X, Body Style Body-Ported, Pilot Port Size 1/4 in NPT, Pilot Pressure 24.6 psi, Coefficient of Volume 1.4, Power Consumption 3 W, Ambient Temp. Range 14 Degrees to 122 Degrees F
