  13. 120VAC Reversing Magnetic Contactor 3P 27A NEMA 1

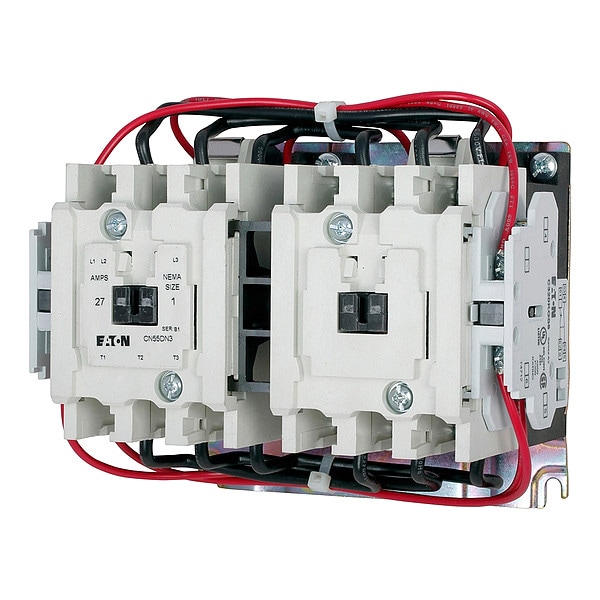

Eaton 120VAC Reversing Magnetic Contactor 3P 27A NEMA 1 CN55DN3AB - main

120VAC Reversing Magnetic Contactor 3P 27A NEMA 1

  • Mfr # CN55DN3AB

  • Zoro # G3596232

product price: $1,796.99
/ea
Free Shipping & Returns

Key Features

Action
Reversing
Full Load Amps
27 A
Number of Poles
3
NEMA Contactor Size
1
Reversing
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CN55DN3AB
Zoro #
G3596232
UPC #
782113973579
Country of Origin
Dominican Republic

Dimensions

NEMA Contactor Size
1
Height
6.5 in
Width
7.3 in
Depth
7.7 in
NEMA Size
1
Size
1
Product Width
2.56 in
Product Length/Depth
4.44 in
Product Height
5.05 in
Overall Width
2.56 in
Mounting Hole Diameter
0.25 in
Mounting Hole Distance - Height
4.5 in
Overall Height
5.05 in
Overall Depth
4.44 in
Frame Size
D
Mounting Hole Distance - Width
2 in

Details

Item
Magnetic Contactor
Action
Reversing
Full Load Amps
27 A
Number of Poles
3
Coil Volts
120V AC
Reversing
Yes
HP @ 1 Phase - 120V
2 hp
HP @ 1 Phase - 240V
3 hp
HP @ 3 Phase - 208V
7 1/2 hp
HP @ 3 Phase - 240V
7 1/2 hp
HP @ 3 Phase - 575V
10 hp
HP @ 3 Phase - 480V
10 hp
Enclosure NEMA Rating
No Enclosure
Frame / Series / Class / Code
Series Freedom, Code A, Frame 180mm
Hz
50/60
Auxiliary Contact Form
1NO/1NC
Standards
CSA, UL Listed
Series
Freedom
HP rating - max
2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208,240V, 10 hp at 480,600V
Phase
Three
Amperage Rating
27A
Certifications
UL Listed
Product Name
Eaton Freedom NEMA motor control contactor
Horsepower @ Three Phase - 480V AC
10 hp
Number of Auxillary Contacts
2
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Electrical Operating Durability
3,000,000
Horsepower @ Single Phase - 240V AC
3 hp
Full Load Current - Inductive
27 A
Horsepower @ Three Phase - 600V AC
10 hp
Includes Auxiliary Contacts
Yes
Terminal Connection Type
Screw Terminals
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Embedded Surge Suppressor
No
Frequency
50/60 Hz
Horsepower @ Single Phase - 120V AC
2 hp
Contactor Style
NEMA
Resistance Properties
Impact Resistant, Temperature Resistant
NEMA Enclosure Rating
No Enclosure
Mounting Style
Panel
Reversing Capability
Reversing
Coil Voltage
110/120V AC
Mounting Postion
Horizontal, Vertical

Description

NEMA Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size 1, Coil Voltage 110/120V AC, Number of Poles 3, Full Load Current - Inductive 27 A, Reversing Capability Reversing, Overall Height 5.05 in, Overall Width 2.56 in, Terminal Connection Type Screw Terminals, Frame Size D, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 2, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 10 hp
