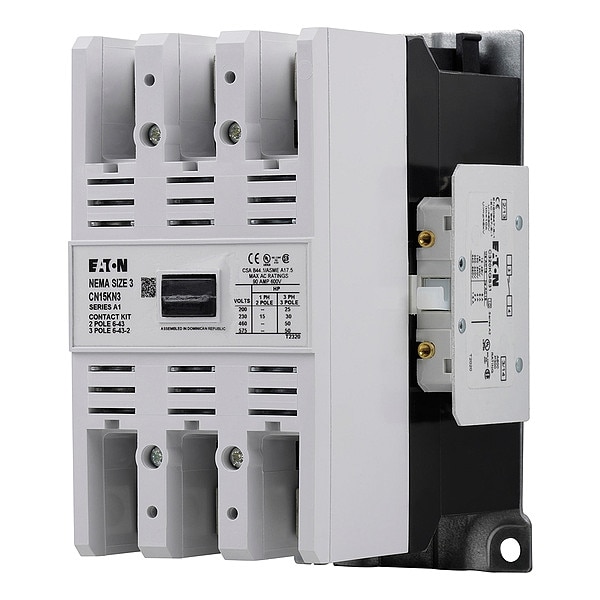

240VAC Non-Reversing Magnetic Contactor 3P 90A NEMA 3

  • Mfr # CN15KN3B

  • Zoro # G3664342

product price:
$
1,943.99
/ea
Free Shipping & Returns

Key Features

Action
Non-Reversing
Full Load Amps
90 A
Type
Contactor
Number of Poles
3
NEMA Contactor Size
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CN15KN3B
Zoro #
G3664342
UPC #
782113618890
Country of Origin
United States

Dimensions

NEMA Contactor Size
3
Height
6.4 in
Width
8.6 in
Depth
10.2 in
NEMA Size
3
Product Length/Depth
5.94 in
Product Height
7.17 in
Product Width
4.08 in
Size
3
Nema Frame Size
NEMA Size 3
Overall Depth
5.94 in
Mounting Hole Distance - Width
3 in
Overall Width
4.08 in
Mounting Hole Distance - Height
6.63 in
Overall Height
7.17 in
Mounting Hole Diameter
0.25 in
Frame Size
K

Details

Item
NEMA Magnetic Contactor
Action
Non-Reversing
Full Load Amps
90 A
Type
Contactor
Number of Poles
3
Coil Volts
240V AC
Reversing
No
HP @ 3 Phase - 208V
25 hp
HP @ 3 Phase - 575V
50 hp
HP @ 3 Phase - 240V
30 hp
HP @ 3 Phase - 480V
50 hp
Enclosure NEMA Rating
No Enclosure
Hz
50/60
Frame / Series / Class / Code
Series Freedom, Code A, Frame 180mm
Auxiliary Contact Form
1NO
Standards
CSA, UL Listed
Series
Freedom
Horsepower
25 hp at 208 V, 30 hp at 240 V, 50 hp at 480/600 V
Certifications
CSA Certified
Amperage Rating
90A
Phase
Three
Overload Relay
None
Product Name
Eaton Freedom NEMA motor control contactor
Coil Voltage
220/240V AC
Horsepower @ Three Phase - 600V AC
50 hp
Horsepower @ Three Phase - 240V AC
25 hp
Reversing Capability
Non-Reversing
Horsepower @ Three Phase - 208V AC
25 hp
Minimum Operating Temperature
-4 Degrees F
Mounting Style
Panel
Response Time
14 msec
Embedded Surge Suppressor
No
Mounting Postion
Horizontal, Vertical
NEMA Enclosure Rating
No Enclosure
Number of Auxillary Contacts
1
Horsepower @ Three Phase - 480V AC
50 hp
Frequency
50/60 Hz
Includes Auxiliary Contacts
Yes
Resistance Properties
Impact Resistant, Temperature Resistant
Maximum Voltage Rating
600V AC
Contactor Style
NEMA
Mechanical Operating Durability
6,000,000
Maximum Operating Temperature
149 Degrees F
Electrical Operating Durability
1,700,000 (AC-3), 60,000 (AC-4)
Full Load Current - Inductive
90 A
Terminal Connection Type
Screw Terminals

Description

NEMA Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size 3, Coil Voltage 220/240V AC, Number of Poles 3, Full Load Current - Inductive 90 A, Reversing Capability Non-Reversing, Overall Height 7.17 in, Overall Width 4.08 in, Terminal Connection Type Screw Terminals, Frame Size K, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 1, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 25 hp, Horsepower @ Three Phase - 480V AC 50 hp
