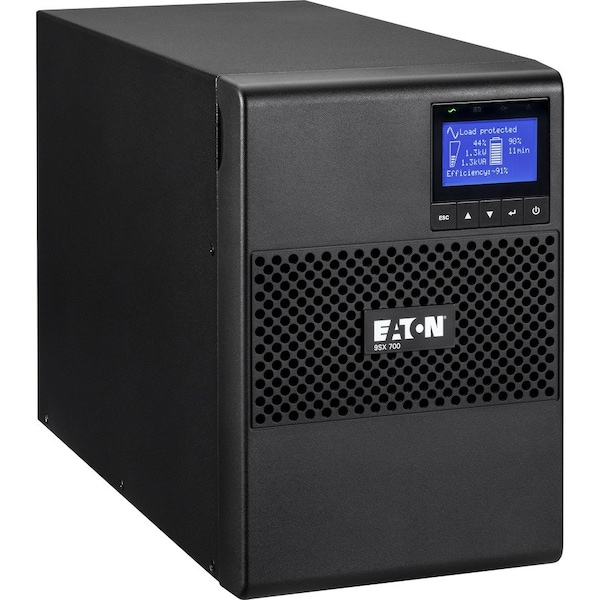

Eaton 9Sx 120V Ups 700Va 5-15P 6/5-15R 9SX700 - main

9Sx 120V Ups 700Va 5-15P 6/5-15R

  • Mfr # 9SX700

  • Zoro # G9641968

product price:  $1,082.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Online/Double Conversion
Power Rating
700VA
Mounting
Tower
Wattage
630 W
Input Voltage
120V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9SX700
Zoro #
G9641968
UPC #
743172091222
Country of Origin
Unknown

Dimensions

Width
13.9 in
Input Cord Length
8 ft
Product Height
9.9 in
Product Length/Depth
13.9 in

Details

Item
UPS System
UPS Type
Online/Double Conversion
Power Rating
700VA
Mounting
Tower
Wattage
630 W
Input Voltage
120V
Output Voltage
120V AC
Backup Time (Half/Full Load)
16 min/5 min
Outlet Type
UPS
Number of Outlets
6
Standards
cULus Listed
NEMA Receptacle Configuration
(6) 5-15R
Output Waveform
True sine wave
Feed type
1
VA rating
700 VA
Internal bypass
Yes
Communication
(1) MiniSlot|(1) USB port|(1) Serial RS-232 port|(1) RPO/ROO/Signal input terminal|(1) mini-terminal block for output relay
Output Power Factor
0.9
Battery management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Package Contents
9SX 700 VA UPS|Quick start guide|RS-232 serial cable|USB cable
Input connection
5-15P
Form factor
Tower
Potential free switch contact
Yes
Expansion Slots
(1) Mini-Slot (MS) expansion port. Optional connectivity cards may be ordered separately.|- Gigabit Web/SNMP card part number: NETWORK-M2|- Modbus card part number: MODBUS-MS|- Relay card part number: RELAY-MS
User interface
5-button graphical user interface
Output Frequency
50/60 Hz
Battery replacement
Hot-swappable internal batteries and extended battery modules (EBMs)
Compliances
FCC Compliant
Extended Battery Capability
Yes
Input Power Factor
>.99
Temperature range
0° to 40°C (32° to 104°F)
Construction type
Free standing model
Input Frequency Range
60 Hz: 50 to 70 Hz, 50 Hz: 40 to 60 Hz

Description
